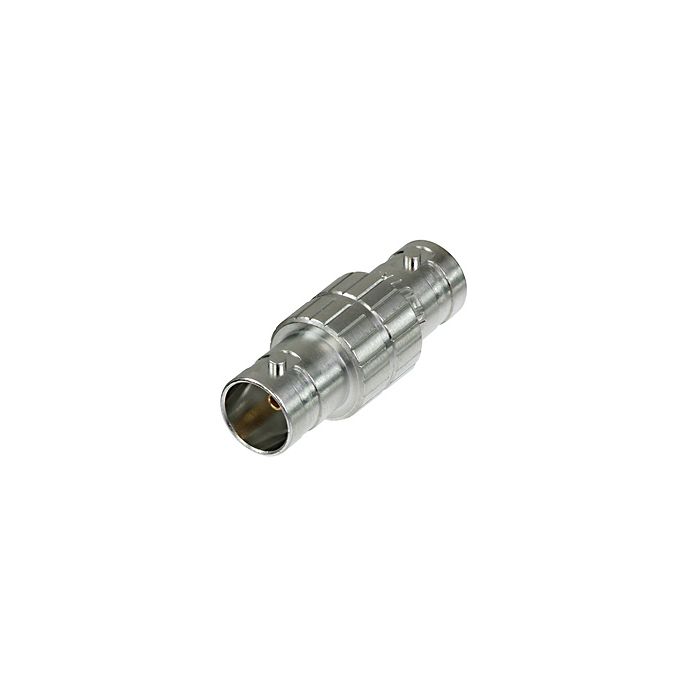

Neutrik NBB75FA Feed Through Coupler
by Neutrik
Raspoloživost Sarajevo:
Isporuka 7-10 dana
Raspoloživost Zagreb:
Dostupno
SKU
NEU-NBB75FA
Gold plated cage type center contact
23,00 KM
19,66 KM
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Neutrik NBB75FA
New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
| Product | |
| Title | NBB75FA |
| Connection Type | BNC 75 Ω |
| Gender | female |
| Electrical | |
| Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz |
| Mechanical | |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Material | |
| Contacts | Brass (CuZn39Pb3) (ground contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Environmental | |
| Temperature range | -30 °C bis +85 °C |
