Decimator MD-LX

Raspoloživost Sarajevo: Isporuka 7-10 dana

Raspoloživost Zagreb: Dostupno

SKU

DD-LX

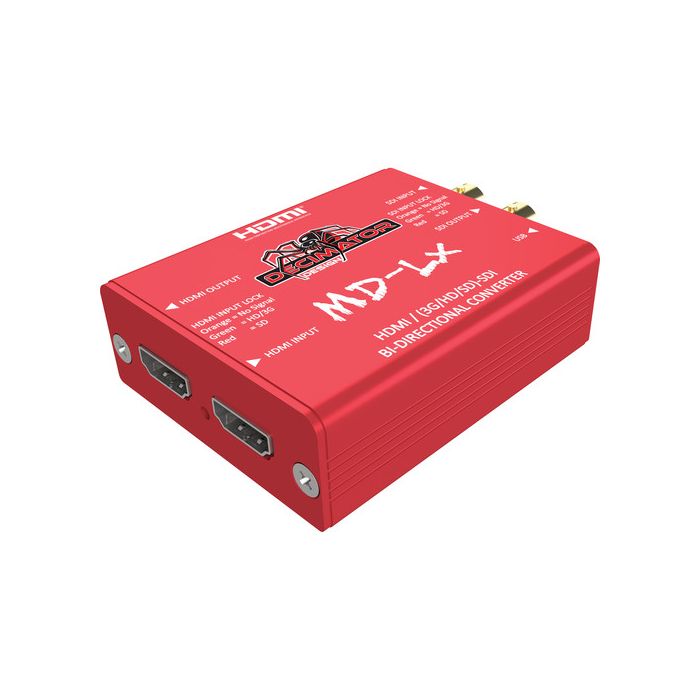

DECIMATOR MD-LX is a pocket-sized bi-directional converter featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other.

293,00 KM 250,43 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

DECIMATOR MD-LX HDMI/SDI Bi-Directional Converter
Power Supply
USB Cable

Detalji

The DECIMATOR MD-LX is a pocket-sized bi-directional converter featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other. It supports up to 1080p60 resolution and offers multiple input/output conversion modes.

Conversion Modes

Auto Select: Active input to all outputs / or SDI to HDMI & HDMI to SDI if both inputs are active
HDMI input to SDI output & SDI input to HDMI output
SDI input to HDMI and SDI outputs
HDMI input to HDMI and SDI outputs

Other Features

Supports 3G Level A and B and allows for conversion between both
USB port for power, control, and firmware upgrades
HDMI and SDI input locks

Više informacija

Input	1 x HDMI Type A 1 x 3G/HD/SD-SDI 1 x Micro USB port for power, control, and firmware updates
Output	1 x HDMI Type A 1 x 3G/HD/SD-SDI
HDMI Format Support	1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz 1920 x 1080i at 50/59.94/60 Hz 1280 x 720p at 25/29.97/30/50/59.94/60 Hz 625i at 50 Hz 525i at 59.94 Hz
SDI Format Support	3G-A or 3G-B: SMPTE 424M at 2.97 and 2.967 Gbps 1080p at 50/59.94/60 Hz HD: SMPTE 292M/274M/296M at 1.485 and 1.435 Gbps 1080i at 50/59.94/60 Hz 1080p/psf at 23.98/24/25/29.97/30 Hz 720p at 23.98/24/25/29.97/30/50/59.94/60 Hz SD: SMPTE 259M at 270 Mbps 625i at 50 Hz 525i at 59.94 Hz
Power	USB: 4.4 to 5.25 VDC Uses under 2.5 W
Dimensions	2.4 x 2.9 x 0.9" (6 x 7.4 x 2.3 cm)
