Decimator DMON-12S
by Decimator DesignECIMATOR DMON-12S Multi-Viewer can be used either as a 1-to-12-channel multi-viewer or 12-to-1-input multiplexer supporting up to 1080p@60/59.94/50Hz on input and output.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- DECIMATOR DMON-12S 12-Channel Multi-Viewer with SDI & HDMI Outputs
- Universal Power Supply
- HDMI Cable
- USB Cable

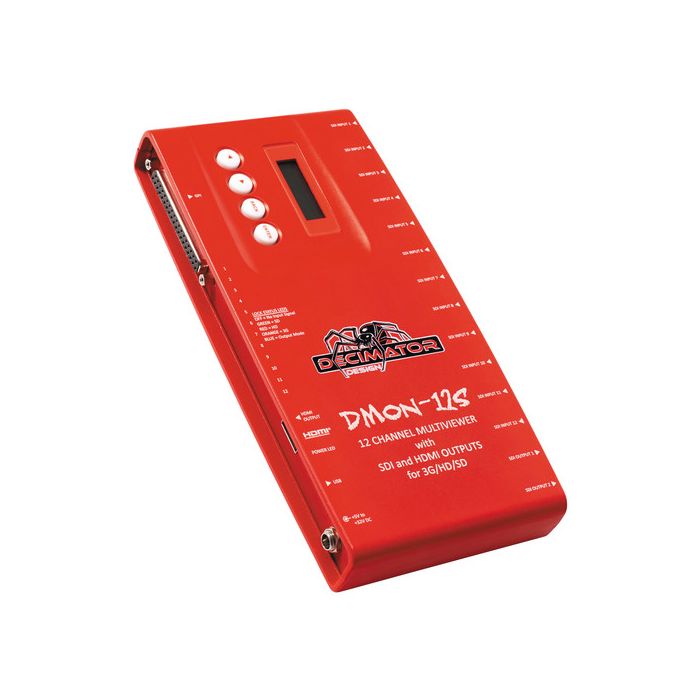

Featuring 12 independent 3G/HD/SD-SDI inputs, the DECIMATOR DMON-12S Multi-Viewer can be used either as a 1-to-12-channel multi-viewer or 12-to-1-input multiplexer supporting up to 1080p@60/59.94/50Hz on input and output. A miniature multi-viewer with front-panel LCD menu access, the DMON-12S is suitable for both on-location and studio applications, as you won't need to use a computer or DIP switch to make selections and adjust settings.
The DMON-12S offers 16-channel audio metering overlay per window with individual enables, custom positioning, and size, and it features 2 3G/HD/SD-SDI outputs and 1 HDMI output. RS-422 and RS-485 support additionally allow you to select tally display and control the UMD position and size.
Multi-View output mode lets you select and display inputs with different formats and frame rates at the same time, and Pass-Through mode allows any of the 12 inputs to be selected for output via the SDI and HDMI outputs. You can select from preset display layouts or create and save your own custom layouts, and with up to 32 GPI you can interface with additional devices for tally and remote switching.
| SDI Input & Output Formats | 3G (SMPTE 424M@2.97 Gbps and 2.967 Gbps): 1080p at 60/59.94/50 Hz HD (SMPTE 292M/274M/296M@1.485 Gbps and 1.435 Gbps 1080p/psf at 30/29.97/25/24/23.98 Hz 1080i at 60/59.94/50 Hz 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz SD (SMPTE 259M@270 Mbps) 525i at 59.94 Hz 625i at 50 Hz |
| HDMI Output Formats | 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz 1080i at 60/59.94/50 Hz 720p at 60/59.94/50/30/29.97/25 Hz 525i at 59.94 Hz 625i at 50 Hz |
| Inputs | 12x 3G/HD/SD-SDI on BNC (embedded audio support) |
| Outputs | 2x 3G/HD/SD-SDI on BNC 1x HDMI Type-A |
| LED Indicators | Power, Signal Lock and Rate |
| Power | 5 - 32 VDC, Pin Positive connector |
| Dimensions | 8.7 x 4.1 x 1.2" (22 x 10.4 x 3 cm) |
