SmallRig ''HawkLock'' Cage Kit for Sony Alpha 7R V / 7 IV / 7S III / 1 / 7R IV (
by SmallRigProfessional "HawkLock" Handheld Kit
Unlimited Expansion
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Cage x 1
- HDMI Cable Clamp x 1
- "HawkLock" Top Handle x 1
- "HawkLock" Side Handle x 1
- "HawkLock" H21 NATO Rail x 1
- Allen Wrench x 1
- Operating Instruction x 1

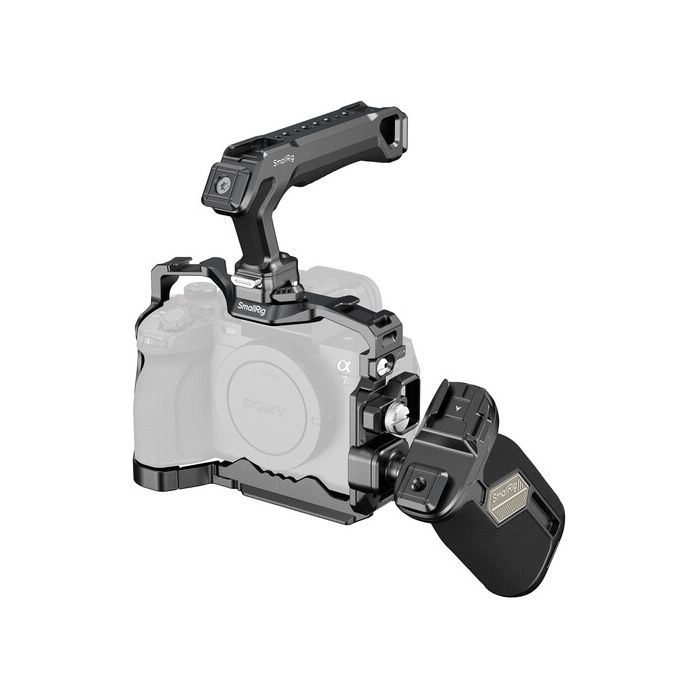

SmallRig "HawkLock" Cage Kit for Sony Alpha 7R V / 7 IV / 7S III / 1 / 7R IV (Advanced Edition) 5599 is expertly crafted to improve handheld shooting experience while offering comprehensive camera protection and versatile mounting options. This kit includes a cage, an HDMI cable clamp, a "HawkLock" side handle, a "HawkLock" top handle, and a "HawkLock" NATO rail.
Both the side and top handle feature SmallRig’s patented "HawkLock" quick release system, allowing for rapid slide-in auto-locking attachment, which significantly improves handheld stability. In addition, the side handle supports one-touch 360° stepless rotation for flexible shooting angles. A two-point locking mechanism ensures a secure, anti-twist cage attachment without the need to remove the camera’s eyelet triangles.
The cage features multiple mounting points, including 1/4"-20 threaded holes, 3/8"-16 ARRI locating holes, and a "HawkLock" NATO rail for quick attachment of accessories such as monitor mounts and "HawkLock" handles. A built-in cold shoe mount accommodates devices like the DJI Mic 2 or lights, while a QD socket at the base allows for shoulder strap attachment. The base is also equipped with a magnetic Allen wrench for quick assembly and disassembly.
The bottom quick release plate, paired with the "HawkLock" H38 Arca-Swiss quick release mount plate (ID 4486), enables rapid slide-in attachment with an auto-locking mechanism. The integrated Arca-Swiss quick release plate allows for seamless transitions between handheld, tripod, and gimbal setups (compatible with Arca-type tripods and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro).
A hinged door at the battery compartment adds grip support for the little finger, while the included HDMI cable clamp secures the cable for stable data transmission.
Compatibility
Sony Alpha 7R V
Sony Alpha 7 IV
Sony Alpha 7S III
| Support Type | Cage |
| Grip Type |
Topside Handgrip, Single Handgrip
|
| Camera Compatibility |
Sony a7 IV, Sony a7R V, Sony a7S III
|
| Mounting | |
| Battery Plate Type | No |
| Accessory Mounting | Cage, Top |
|
1x Anti-Twist 3/8"-16 Female Thread
|
|
|
4x 1/4"-20 Female Thread
|
|
| Cage, Sides | |
|
2x Anti-Twist 1/4"-20 Female Thread
|
|
|
6x 1/4"-20 Female Thread
|
|
| Top Handle, Top | |
|
2x Anti-Twist 1/4"-20 Female Thread
|
|
|
3x 1/4"-20 Female Thread
|
|
|
Side Handle, Top
|
|
|
1x 1/4"-20 Female Thread
|
|
| Camera Mounting |
1/4"-20 Male Screw
|
| Tripod Mounting |
1/4"-20 Female Thread, Built-In Arca-Type Plate
|
| Shoe Mounting | Cage |
| 2x Cold Shoe | |
| Top Handle | |
| 2x Cold Shoe | |
|
Side Handle, Top
|
|
| 1x Cold Shoe | |
| Rosettes | No |
| Rail Mounting | Cage, Side |
| 1x NATO Rail | |
| Side Handle | |
|
1x NATO Rail Clamp
|
|
| 1x NATO Rail | |
| Top Handle | |
|
1x NATO Rail Clamp
|
|
| 2x NATO Rail | |
| Cable Clamp | 1x HDMI Clamp |
| General | |
| Materials | Aluminum Alloy |
| Dimensions |
8.6 x 8.1 x 5.6" / 217.5 x 206.6 x 141.6 mm
|
| Weight | 21.6 oz / 611.5 g |
