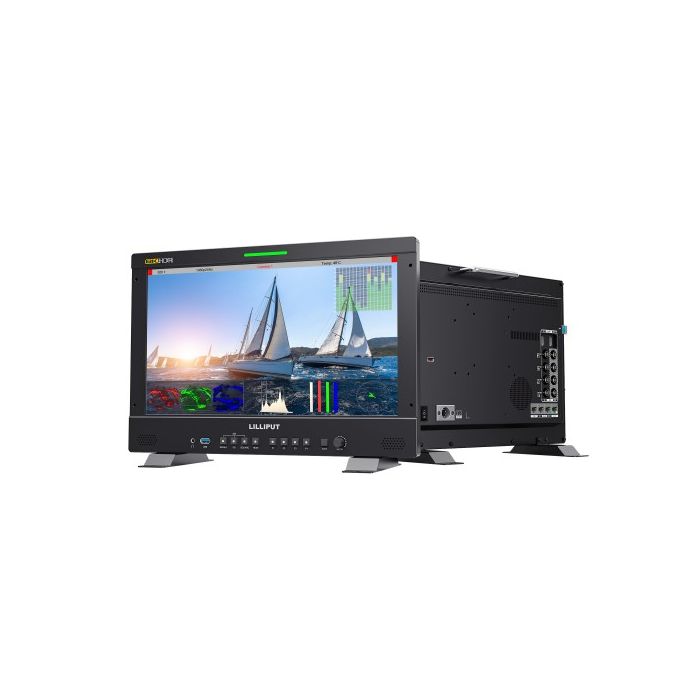

Lilliput Q15-8K 12G-SDI HDMI Monitor
by LilliputThe Lilliput Q15-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Lilliput Q15-8K 12G-SDI HDMI Monitor
The Lilliput Q15-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.
With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.
| Display | |
| Aspect Ratio | 16:9 |
| Brightness | 600cdm² |
| Colour Space | REC .709 and DCI-P (90%) |
| Contrast Ratio | 1700 : 1 |
| Resolution | 3840 x 2160 |
| Viewing Angle | 170° / 170° |
| HDR | ST2084 300/1000/10000/HLG |
| LUT Support | 3D LUT (.cube format) |
| Screen Size | 15.6" |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use |
| Supported Formats | |
| HDMI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 |
| SDI Formats Supported | 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| SFP Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| Monitor Specification | |
| Video Inputs | SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input |
| Video Outputs | SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output |
| Size | |
| Dimensions | 393 x 267 x 41.4 mm |
| Weight | 3 Kg |
| Power | |
| Input Voltage | DC 12V - 24V |
| Power Consumption | <= 60W (15V) |
| Environment | |
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | -20°C to 60°C |
