Sennheiser XSW 1-908-E

by Sennheiser

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

SEN-507105

SK-XSW Bodypack Transmitter
EM-XSW 1 UHF Receiver

726,00 KM 620,51 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Sennheiser XSW 1-908-A UHF Wireless Brass Set with e908T Gooseneck Mic (E-Band: 821 - 832/ 863 - 865 MHz)
e908T Cardioid Gooseneck Microphone
NT12-5 CW Power Supply
2 x AA Batteries

Detalji

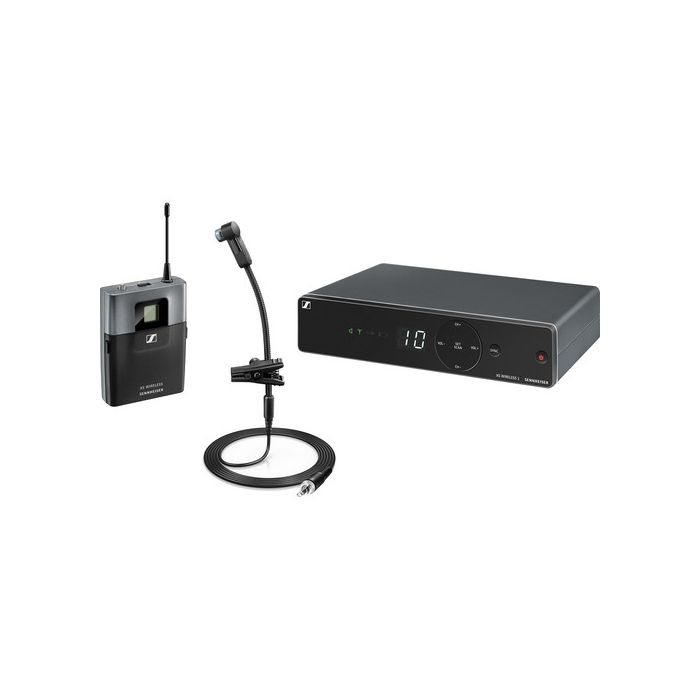

The XSW 1-908-E UHF Wireless Brass Set with e908T Gooseneck Mic from Sennheiser is an easy to use all-in-one wireless system for brass and woodwind instruments. It can be used in live sound applications, allowing freedom of movement for live stage, theater, rehearsals, and more.

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an e908T cardioid gooseneck microphone. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception

Više informacija

Microphone
Type	Condenser
Polar Pattern	Cardioid
Total Harmonic Distortion (THD)	≤ 0.9%
System
Modulation	Wideband FM
Frequency Range	E-Band: 821 - 832/ 863 - 865 MHz
Switching Bandwidth	Up to 24 MHz
Signal to Noise Ratio	≥ 103 dBA
Total Harmonic Distortion	≤ 0.9%
Temperature Range	Operation: 32 to 104°F (0 to +40°C)
Storage	-4 to 158°F (-20 to 70°C)
Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)
Receiver
Principle	Double superheterodyne
Diversity	Antenna switching diversity via internal antennas
Sensitivity	< 3 μV at 52 dBA RMS S/N (at peak deviation)
Frequency Response	50 Hz to 16 kHz (-3 dB)
Max Output Voltage	At Peak Deviation, 1 kHz AF
	1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
	XLR Socket (balanced): +12 dBu
Adjustment Range	Audio: 45 dB, adjustable in 5-dB steps
Power Supply	12 VDC nominal/300 mA
Squelch	Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level	20 dB, switchable
Material of Construction	ABS housing
Dimensions	7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
Weight	12 oz (340 g)
Bodypack Transmitter
Output Power	10 mW
Frequency Response	Line: 50 Hz to 16 kHz
	Mic: 50 Hz to 16 kHz
Audio Input	1/8" (3.5 mm) jack socket
Input Voltage	Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply	2 x AA batteries, 1.5 V
Operating Time	Approximately 10 hours
Adjustment Range	Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction	Rugged ABS housing
Dimensions	2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
Weight	3.4 oz (95 g)
Packaging Info
Package Weight	2.95 lb
Box Dimensions (LxWxH)	13.6 x 13.5 x 3.5"
