Sennheiser SL PASC 2

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

SEN-390040

For SpeechLine Digital Wireless Mics
For up to Two SL Rack Receiver DW
Connects to AWM 2 or AWM 4 Antenna
4 x SMA-RP Cables

870,00 KM 743,59 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

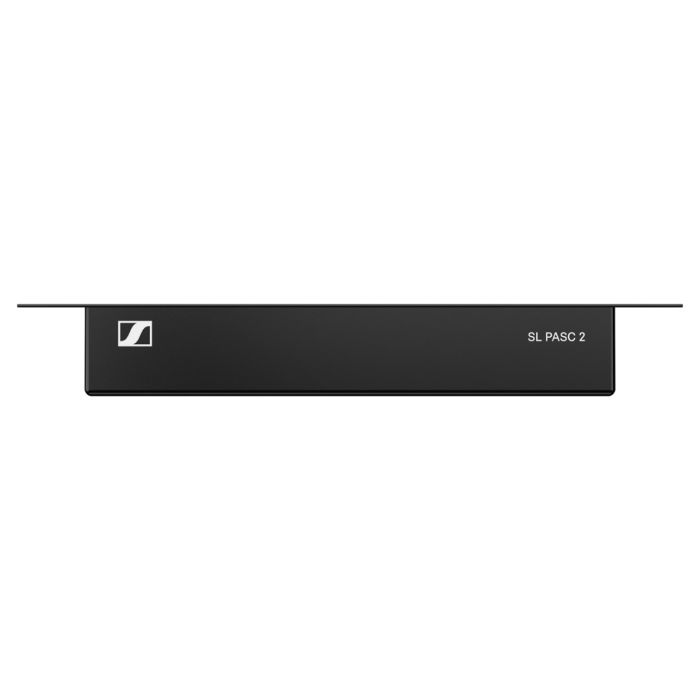

Sennheiser SL PASC 2 Two-Channel Passive Antenna Splitter/Combiner for SpeechLine Series (1880 to 1930 MHz)
4 x SMA-RP Cables (2')

Detalji

The Sennheiser SL PASC 2 is a passive, two-channel true diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series.

It is used to distribute the antenna signals from up to two SpeechLine Digital Wireless radio links. In combination with the AWM 2 or AWM 4 remote antennas (both available separately), the number of required antenna cables is reduced to a minimum.

Connect the SL PASC 2 to the rack receivers using the supplied SMA-RP cables.

Features

Two-channel passive antenna combiner/splitter
1880 to 1930 MHz (DECT range)
4 x RF outputs for connecting up to two SL Rack Receiver DW units
2 x RF inputs to connect an AWM 2 or AWM 4 antenna
6 x RP-SMA (AC coupled) connectors
4 x SMA-RP cables

Više informacija

Type	2-Channel, Connects to a maximum of Two Receivers
Frequency Band	DECT: 1880 to 1930 MHz
Connectors	6 x RP-SMA (AC-Coupled)
Attenuation	4.5 dB Typ.
Input Power	1.5 W, Max
Color	Black
Operating Temperature	-40 to 185°F / -40 to 85°C
Dimensions	5.9 x 2.0 x 0.8" / 150.0 x 50.0 x 21.0 mm
Weight	4.8 oz / 135.0 g
