Sennheiser EW-DX 835-S SET (S1-10)
by Sennheiser2 channel half rack (9.5’)
Up to 88 MHz switching bandwidth
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- EW-DX EM 2 rack receiver
- 2 EW-DX SKM-S handheld transmitter
- 2 MMD 835 microphone module
- EW-D Power Supply with country adapters
- 2 BA 70 rechargeable battery packs
- 2 MZQ 1 microphone clamp
- 2 rod antennas
- GA 3 rack mount Kit
- 4 rubber feet

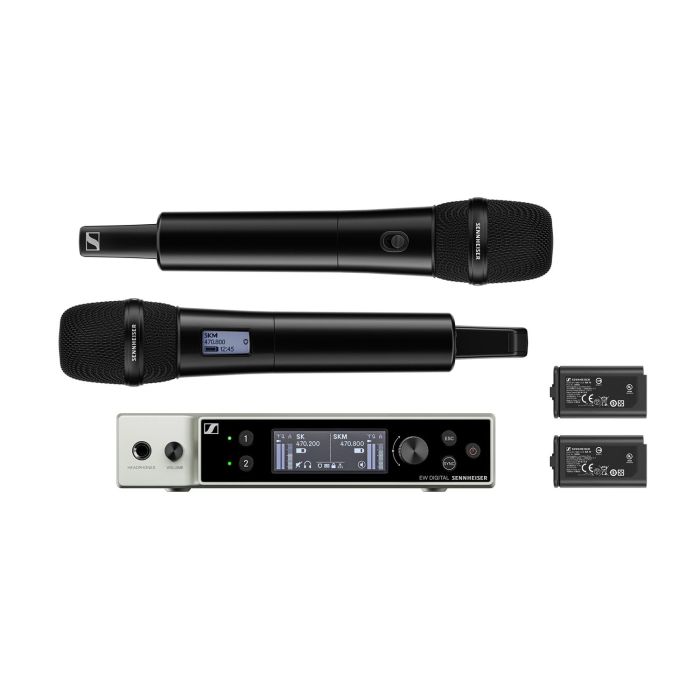

This set consists of 2 x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX EM 2 rackmount receiver and 2 x BA 70 rechargeable batteries.
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.
The NT 12-35 CS PSU with an EW-D power distribution cable can power up to 4 dual receivers.
|
Audio link frequency ranges:
|
|
Q1-9: 470.2 - 550 MHz
|
|
R1-9: 520 - 607.8 MHz
|
|
S1-10: 606.2 - 693.8 MHz
|
|
S2-10: 614.2 - 693.8 MHz
|
|
S4-10: 630 - 693.8 MHz
|
|
U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
|
|
V3-4: 925.2 - 937.3 MHz
|
|
V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
|
|
X1-6: 1350.2 - 1398.8 MHz
|
|
X9-18: 1435.2 - 1524.8 MHz
|
|
Y1-3: 1785.2 - 1799.8 MHz
|
|
Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
|
|
Audio frequency response: 20 Hz - 20 kHz (-3 dB)
|
| Audio THD: |
| ≤ -60 dB for 1 kHz |
| @ -3 dBfs input level |
|
Dynamic range: 134 dB
|
|
System latency: 1.9 ms
|
|
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
|
|
Relative humidity: 5 - 95 % (non-condensing)
|
|
EW-DX EM 2 (Rack Receiver)
|
|
Input voltage: 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
|
| Input current: ≤ 1 A |
|
Transmit power (radiated): BLE: max. 10 mW EIRP
|
|
Audio output power: 18 dBu max.
|
|
Headphone output: 2x 70 mW @ 32 Ω
|
| Ethernet: |
|
RJ-45 socket, IEEE802.3
|
|
100Base-TX (half+full duplex)
|
|
10Base-T (half+full duplex)
|
| (CAT5e or higher) |
|
Dimensions: 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
|
|
Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)
|
|
EW-DX SKM-S (Handheld Transmitter)
|
|
Input voltage: 2.0 - 4.35 V
|
|
Input current: < 300 mA
|
|
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
|
|
Occupied bandwidth: 200 kHz
|
|
Transmit power (radiated):
|
|
Audio link: 10 mW ERP
|
|
(Range Y1-3: 12 mW ERP)
|
|
BLE: max. 10 mW EIRP
|
| Dimensions (ø x l) |
|
(incl. MMD 835 microphone module): 50 x 268 mm (1.97" x 10.55")
|
|
(without microphone module): 40 x 200 mm (1.57" x 7.87")
|
|
Weight (without batteries)
|
|
(incl. MMD 835 microphone module): approx. 304 g (0.67 lbs)
|
|
(without microphone module): approx. 195 g (7.14 lbs)
|
|
MMD 835 (Microphone Module)
|
|
Transducer principle: dynamic
|
| Sensitivity: 2.1 mV/Pa |
|
Sound pressure level: 154 dB SPL
|
|
Pick-up pattern: cardioid
|
