Teradek Ranger Mk II 750 12G-SDI/HDMI - Wireless TX V-Mount

Teradek Ranger Mk II 750 12G-SDI/HDMI - Wireless TX V-Mount

by Teradek

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

TRD-10-2581-V

Supports 4.9 to 6.4 GHz Frequency Bands
Transmit Video up to 750' Line of Sight

13.631,00 KM 11.650,43 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter (V-Mount)
2 x N-Type Antenna
V-Mount Battery Plate

Detalji

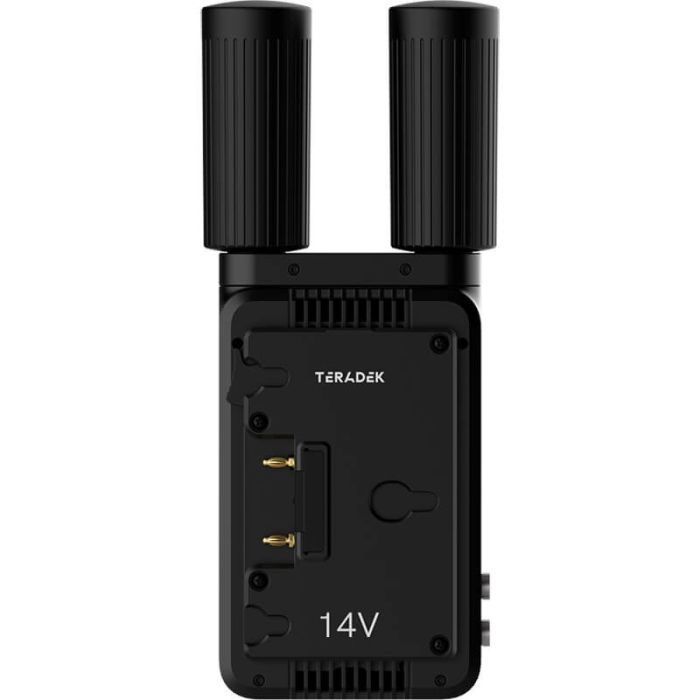

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter (V-Mount)

Transmit lossless HD video up to 750' with the Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support and transmit up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 4K60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input or the included V-mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features

Premium Wireless Hardware

State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 750', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

Ranger Compatibility

Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Zero Delay

When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 4K60, providing a visually lossless and engaging experience for your viewers.

Configure Ranger from PC or Phone

Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
Bluetooth 5 LE connection support
Pair transmitters and receivers with the touch of a button
Measure and analyze the frequency and amplitude of a signal
View live channel strength for licensed/unlicensed bands
Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range

With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

Više informacija

Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter (V-Mount) Specs
Key Specs
Video I/O	1 x HDMI 2.0 Input
	1 x BNC (12G-SDI) Input
	1 x BNC (12G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel
	SDI: 2-Channel
Latency	< 0.01 ms
Video Format	HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 60/59.94/50
	480p: 60/59.94/50
	576i: 60
	480i: 59.94
	SDI (10-Bit 4:2:2 YCC)
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 60/59.94/50
	576i: 50
	480p: 60/59.94/50
	480i: 59.94
Battery Type	1 x V-Mount
Power Consumption	12 W
Mounting	1 x 1/4"-20 Female
