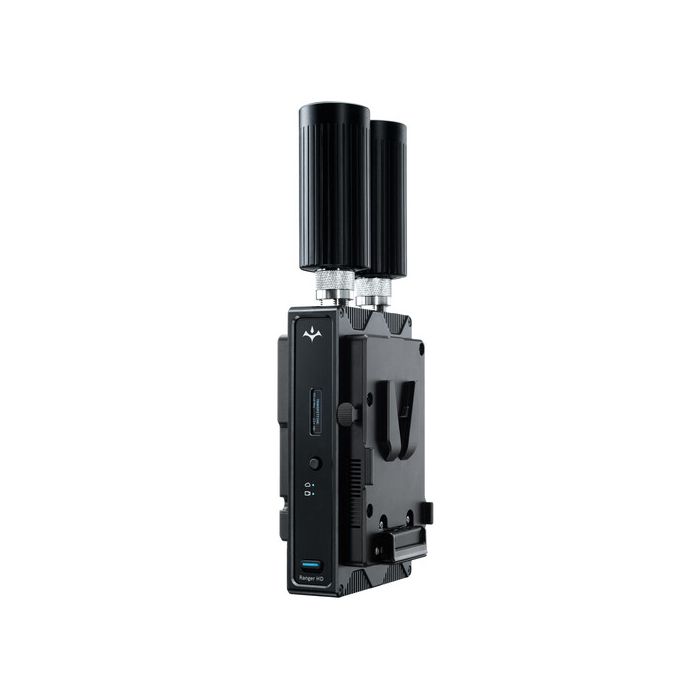

Teradek Ranger HD 3G-SDI/HDMI - Wireless TX V-Mount

The Teradek Ranger HD Wireless Transmitter sends uncompressed 1080p60 HDR video up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.

The Ranger HD transmitter has a 3G-SDI (SMPTE 424M) input and output, and an HDMI input, and it allows HDMI to SDI input cross-conversion.

• Uncompressed, 10-bit, 4:2:2 image quality
• Supports a directional antenna for enhanced wireless performance (sold separately)
• UNII-5 ready
• 40 / 20 MHz channel bandwidth
• AES-256 encryption using RSA 1024 key exchange protocol
• Manual and automatic frequency selection
• Multicast-capable: up to 6 receivers

Ranger HD is an uncompressed, 1080 HDR wireless video transmission system for broadcast, live production, and professional A/V. The system utilises Teradek's patented JSSC technology and operates over the unlicensed 5GHz band. Ranger HD is also capable of transmitting over the 4.9 GHz band, which may require special licensing in certain countries.

Power Through Interference

Teradek's patented Joint Source Channel Coding (JSCC) technology, utilising MIMO and OFDM, enables the transmission of uncompressed, 10-bit, 4:2:2 video at less than 1 millisecond of delay. Ranger’s exclusive RF design is UNII-5 ready and utilises 40 MHz / 20 MHz channels with far greater efficiency than H.264 / HEVC encoding solutions and offers better performance in the noisiest environments.

Easy Smartphone Configuration

Command your wireless workflow from the palm of your hand with the Launchpad app for iOS and Android. Pair transmitters and receivers with the touch of a button, monitor channel interference, and set operating frequencies directly from the app, no cables needed!

Unbreakable Encryption

Ranger offers the industry’s best protection against prying eyes with AES-256 encryption using RSA 1024 key pairing. Combined, these two technologies ensure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorisation.
