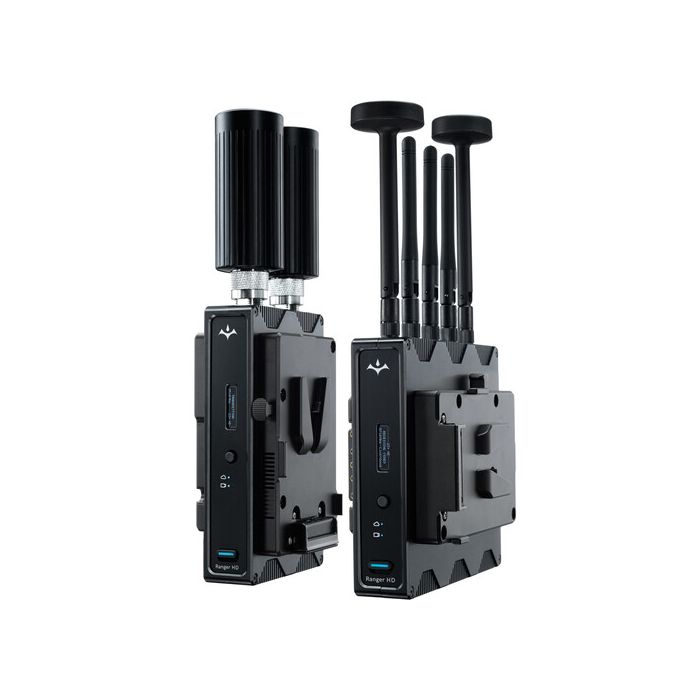

Teradek Ranger HD 3G-SDI/HDMI - Wireless TX/RX Set V-Mount
- 3G-SDI Input/Output; HDMI Input
- 2 x 3G-SDI Outputs; HDMI Output
- Uncompressed 1080p60 HDR up to 1500'
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Teradek Ranger HD Wireless Transmitter (V-Mount)
- USB Type-A to Type-B Cable (3')
- Ultra-Thin HDMI Type-A to Type-A Cable (18")
- 12G-SDI Cable (18")
- PSU 2-Pin to 30W AC Adapter (6')
- Antenna H N-Type Barrel
- Antenna V N-Type Barrel
- Teradek Ranger HD Wireless Receiver (V-Mount)
- 1/4"-20 Light Stand Adapter
- USB Type-A to Type-B Cable (3')
- Ultra-Thin HDMI Type-A to Type-A Cable (18")
- 12G-SDI Cable (18")
- PSU 2-Pin to 30W AC Adapter (6')
- 3 x Antenna 2 dBi Wi-Fi 2.4/5.8 GHz
- 2 x Antenna H Mushroom
The Teradek Ranger HD Wireless Transmitter/Receiver Set carries uncompressed 1080p60 HDR video up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.
The transmitter has a 3G-SDI input and output, and an HDMI input, and it allows HDMI to SDI input cross-conversion. The receiver provides two 3G-SDI outputs and one HDMI output.
Teradek Ranger HD Wireless Transmitter (V-Mount)
The Teradek Ranger HD Wireless Transmitter sends uncompressed 1080p60 HDR video up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.
The Ranger HD transmitter has a 3G-SDI (SMPTE 424M) input and output, and an HDMI input, and it allows HDMI to SDI input cross-conversion.
Uncompressed, 10-bit, 4:2:2 image quality
Supports a directional antenna for enhanced wireless performance (sold separately)
UNII-5 ready
40 / 20 MHz channel bandwidth
AES-256 encryption using RSA 1024 key exchange protocol
Manual and automatic frequency selection
Multicast-capable: up to 6 receivers
Teradek Ranger HD Wireless Receiver (V-Mount)
The Teradek Ranger HD Wireless Receiver accepts uncompressed 1080p60 HDR video from up to 1500' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.
The Ranger HD receiver has two 3G-SDI (SMPTE 424M) outputs and one HDMI output.
|
RANGER HD TX |
|
|
|
|
|
AUDIO |
|
|
Audio Compression |
48kHz 24-bit PCM |
|
Audio Input |
Embedded SDI/HDMI Audio Input (2 channel) |
|
Audio Output |
N/A |
|
PHYSICAL ATTRIBUTES |
|
|
Dimensions |
5.9” x 3.6” x 1.2” (149 x 91 x 30mm) |
|
Weight |
19.1oz (544g) |
|
Construction |
Milled aluminium (chassis), regulation-compliant PCB |
|
Configuration Interface |
OSD Screen with Menu Joystick Navigation |
|
Switches |
On/Off Switch |
|
Desktop App |
Launchpad application for OSX & Windows |
|
Mobile App |
Launchpad app (iOS and Android) configuration via Bluetooth |
|
USB Interface |
Upgrade via Micro-USB |
|
Bluetooth |
Bluetooth 5 LE |
|
WIRELESS |
|
|
Wireless Non-DFS Frequencies |
5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz |
|
DFS Frequencies |
5.270 ~ 5.670 GHz |
|
Licensed Frequencies |
4.9 ~ 5.1GHz and 5.85 ~ 6.0 GHz |
|
RF Channel Selection |
Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies) |
|
Encryption |
AES-256, RSA-1024 key exchange |
|
RF power |
21 dBm |
|
Antennas |
1x Horizontal N-Type 2dbi antenna |
|
Range |
Up to 1000 ft line of sight |
|
Multicast |
Can connect one transmitter to up to 6 receivers |
|
Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones |
|
POWER |
|
|
Power Input |
2-Pin Circular locking connector 7-28 VDC |
|
Battery |
Gold or V mount battery plate |
|
Nominal Power Consumption |
19 Watts |
|
Operating Temperature |
0~40 deg-C |
|
GENERAL |
|
|
Mountability |
Integrated Gold or V Battery Mount, Multiple mounting options with M3, 3/8” and 1/4-20” holes |
|
RANGER HD RX |
|
|
AUDIO |
|
|
Audio Compression |
48kHz 24-bit PCM |
|
Audio Input |
N/A |
|
Audio Output |
Embedded SDI/HDMI Audio Input (2 channel) |
|
PHYSICAL ATTRIBUTES |
|
|
Dimensions |
5.5” x 5.3” x 1.2” (140 x 133 x 30mm) |
|
Weight |
23.2oz (658g) |
|
Construction |
Milled aluminium (chassis), regulation-compliant PCB |
|
Configuration Interface |
OSD Screen with Menu Joystick Navigation |
|
Switches |
On/Off Switch |
|
Desktop App |
Launchpad application for OSX & Windows |
|
Mobile App |
Launchpad app (iOS and Android) configuration via Bluetooth |
|
USB Interface |
Upgrade via Micro-USB |
|
Bluetooth |
Bluetooth 5 LE |
|
WIRELESS |
|
|
Wireless Non-DFS Frequencies |
5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz |
|
DFS Frequencies |
5.270 ~ 5.670 GHz |
|
Licensed Frequencies |
4.9 ~ 5.1GHz and 5.85 ~ 6.0 GHz |
|
RF Channel Selection |
Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies) |
|
Encryption |
AES-256, RSA-1024 key exchange |
|
RF power |
18 dBm |
|
Antennas |
3x Vertical 2dbi antennas |
|
Range |
Up to 1000 ft line of sight |
|
Multicast |
Can connect one transmitter to up to 6 receivers |
|
Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones |
|
POWER |
|
|
Power |
2-Pin Circular locking connector 6-28 VDC |
|
Battery |
Gold or V mount battery plate |
|
Nominal Power Consumption |
15 Watts |
|
Operating Temperature |
0~40 deg-C |
|
GENERAL |
|
|
Mountability |
Integrated Gold or V Battery Mount, Multiple mounting options with M3, 3/8” and 1/4-20” holesholes |
