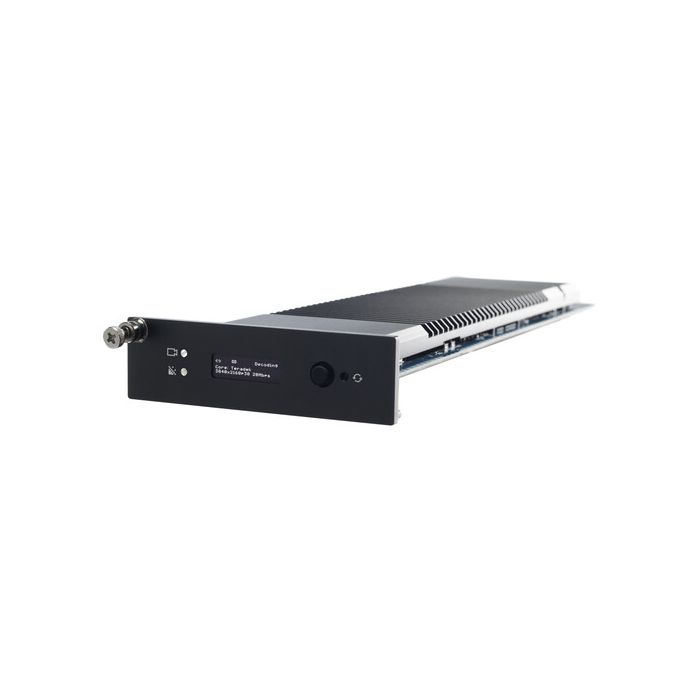

Teradek Prism 873 Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card
- Designed for Prism Rackmount Base System
- 2 x BNC 12G-SDI Outputs, 10-Bit 4:22 HDR
- Supports Resolutions up to 4K60
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Teradek Prism 873 4K 10-Bit HEVC/AVC 12G-SDI Decoder Card
- Audio/Video Backplate
This Prism 873 4K 10-Bit HEVC/AVC 12G-SDI Decoder Card from Teradek is a rackmount chassis card designed for use in the 1 RU or 2 RU Prism Rackmount Base System. The decoder card features one 12G-SDI input that supports 10-bit 4:2:2 video up to 4K60, decodes RTMP/RTMPS, MPEG-TS, and SRT streams using MPEG-4, AVC, H.265, and HEVC high-resolution compression, and supports two channels of embedded audio with AAC-LC compression.
The card also features a built-in video scaler and deinterlacer to support a wide variety of resolutions, genlock signaling from the chassis, and it features 3.5mm audio line input and output jacks. The video is received for decoding from optional Prism, Cube, Slice, Core, and T-Rax encoder cards in the Prism Rackmount Base System.
Compatibility
Teradek 1 RU or 2 RU Prism Rackmount Base System
Can receive video from Prism, Cube, Slice, Core, and T-Rax encoders
Key Features
- Two 12G-SDI outputs support up to 4K60 video
- 10-bit 4:2:2 support
- MPEG-4, H.264, AVC, H.265, HEVC video compression
- Bitrates from 250 Kb/s to 85 Mb/s
- Built-in video scaler and deinterlacer
- RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT) streaming protocols
- AAC-LC audio compression
- Up to 2 channels of audio
- 5mm line-level analog audio input/output
- Genlock signaling from chassis
- 15W power
Teradek Prism 873 Specs
|
Host Connection |
Proprietary |
|
Input Video Format |
SDI (10-Bit 4:2:2) |
|
Input Audio Format |
Analog |
|
Embedded Audio Input |
SDI: 2-Channel (per Input) |
|
Output Video Format |
SDI (10-Bit 4:2:2) |
|
Embedded Audio Output |
SDI: 2-Channel |
Connectivity
|
Other I/O |
1 x 1/8" / 3.5 mm Input |
Hardware
|
Power Consumption |
Device: 15 W |
Packaging Info
|
Package Weight |
1.09 lb |
|
Box Dimensions (LxWxH) |
12.6 x 5.1 x 2.3" |
