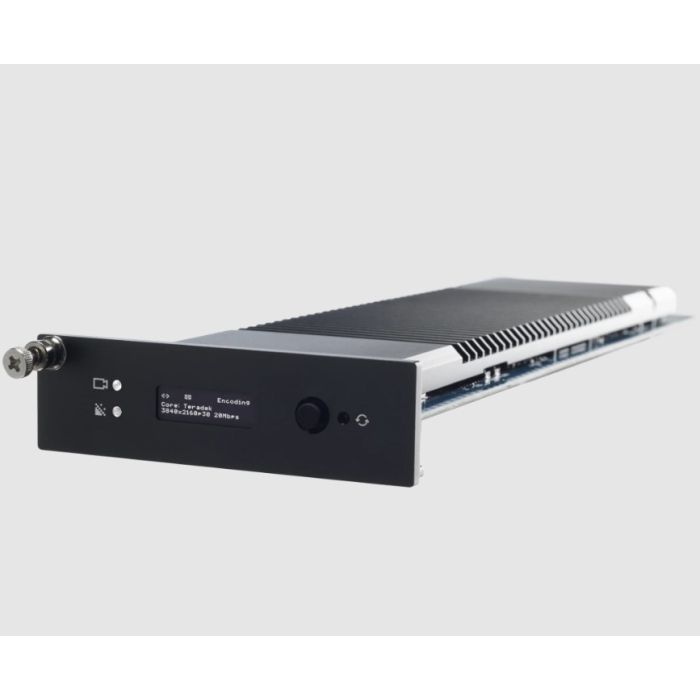

Teradek Prism 851 Prism Rack HD+1080p 10bit HEVC/AVC Encoder Card

Video -

Video Inputs

• 1x SD/HD/3G/6G/12G-SDI (75 Ω BNC)

Hdr Support

• HDR,10-bit, 4:2:2

Video Outputs

• 1x SD/HD/3G/6G/12G-SDI (75 Ω BNC loop out)

Supported Resolutions -

Supported Resolutions

• 1080p 23.98/24/25/29.97/30/50/59.94/60
• 1080i 50/59.94/60*
• 1080PsF 23/24/25/29/30*
• 720p 50/59.94/60
• 576i 480i
• *Prism encoders can encode interlaced or PsF video, but it will be deinterlaced inside the Prism first for H.264. Prism does not output H264 interlaced stream, but
• can output HEVC interlaced streams. Prism decoders can interlace video, i.e. it can receive progressive stream and output 1080i/etc video.

Video Processing -

Video Compression

• ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
• AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
• ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
• HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier

Supported Video Bitrate

• 250 Kbps to 85 mbps

Video Format Conversion Support

• Built in Video Scaler and Deinterlacer

Color Correction

• None

Protocol Support -

Network Protocols

• TCP/IP, UDP, HTTP, DHCP, NTP, SSL,IGMP

Supported Video Transport Protocols

• RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT), RTSP, Airmix

Audio Processing -

Audio Compression

• AAC-LC

Inputs -

Audio Input

• Embedded, 2 channels
• 5mm Stereo Line Level Analog

Outputs -

Audio Output

• Embedded, 2 channels
• 5mm Stereo Line Level Analog

Interfaces -

Configuration Interfaces

• Feature-rich Web UI for configuration and control
• 9” OLED Status Display w/ Nav control
• Video LED
• ENC/DEC LED

Switches

• Reset Switch

Network -

Ethernet

• Dual 10/100/100 Ethernet

Power -

Power Input

• Powered By Chassis

Nominal Power Consumption

• Up to 15W per card
