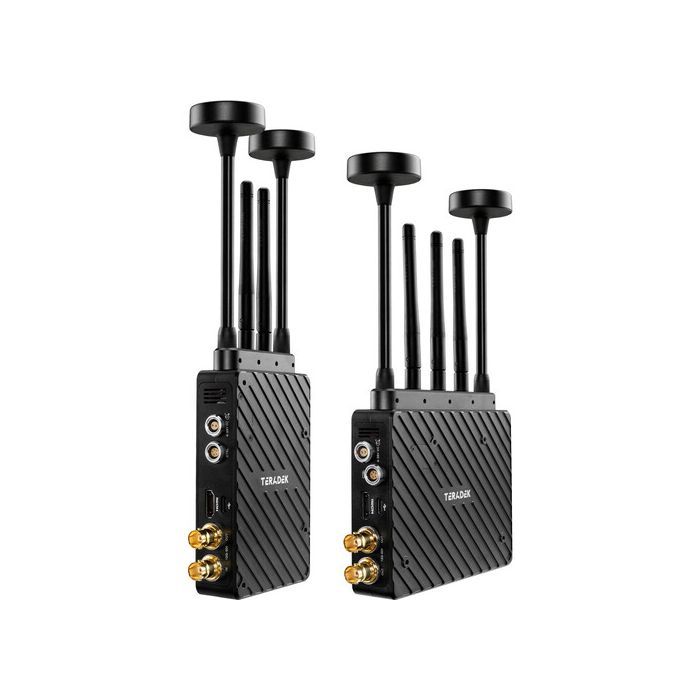

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless TX/RX V-Mount

Transmit and receive lossless HD video from up to 5000' line of sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 XT MAX 12G-SDI/HDMI transmitter and a wireless Bolt 6 XT MAX 12G-SDI/HDMI receiver that support the new 6 GHz wireless frequency, feature bright OLED displays, V-mount battery plates on each unit, and can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support.

Other new features include a smaller, lighter design, improved long-range mode, an SDI eye pattern tool, and 50% quieter performance than previous models. The transmitter inputs video over 12G-SDI or HDMI and features 12G-SDI and HDMI loop outputs, and the receiver outputs video via 12G-SDI and HDMI. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Smaller, lighter, and 50% quieter than previous models
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Transmitter inputs via 12G-SDI and HDMI, transmits up to DCI 4K60 video, and has a 12G-SDI loop output; receiver outputs via 12G-SDI and HDMI
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long-range" mode
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
