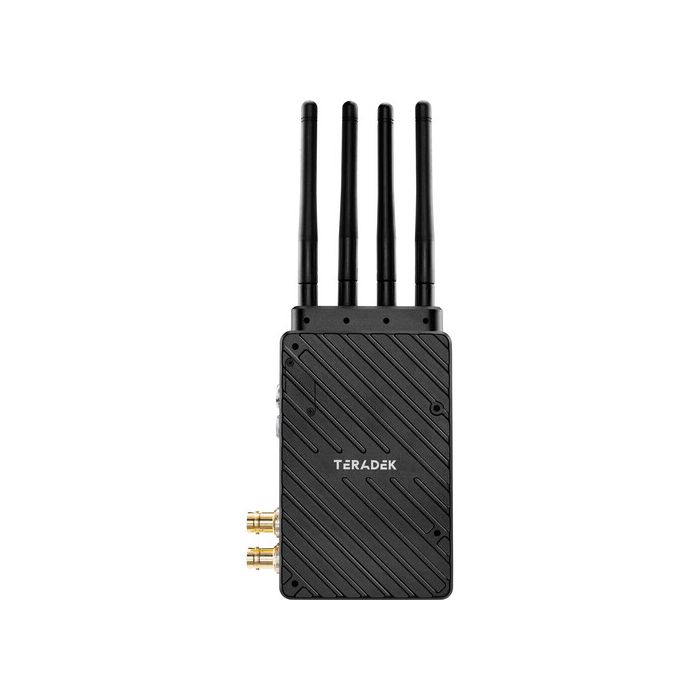

Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Tx

Transmit lossless HD video up to 1500' with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter from Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input video over HDMI or 12G-SDI with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. It also features 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to 1500' line of sight. It features a bright OLED display, a 12G-SDI loop output, and supports camera control with optional firmware via its 5-pin USB output.

The transmitter supports transmission of up to DCI 4K60 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Smaller, lighter, and 50% quieter than previous models
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input and output 12G-SDI and HDMI video and transmit up to 4K30 video; 12G-SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
