Teradek Bolt 6 Monitor Module 1500 RX V-Mount

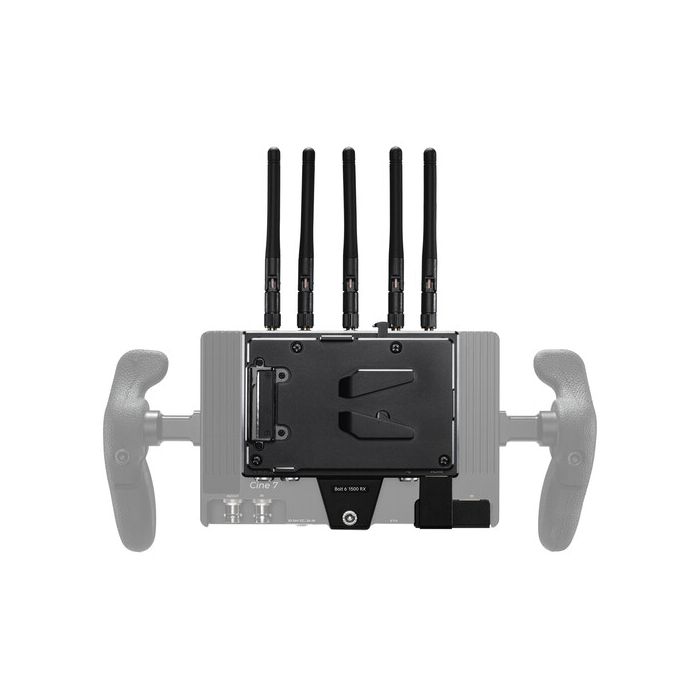

Receive lossless HD video from up to 1500' line-of-sight with the Bolt 6 RX 1500 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to UHD 4K30 HDR video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery.

The receiver module supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to receive over the 6 GHz band. The module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Key Features

Supports the newly available 6 GHz wireless frequency band
Cross-compatible with all Bolt 4K and 4K LT 5G series transmitters
Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI port
V-mount battery plate included
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Smaller and lighter chassis design than other Bolt receivers
The receiver features five antennas
AES-256 encryption and RSA 1024 key pairing support
Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration
