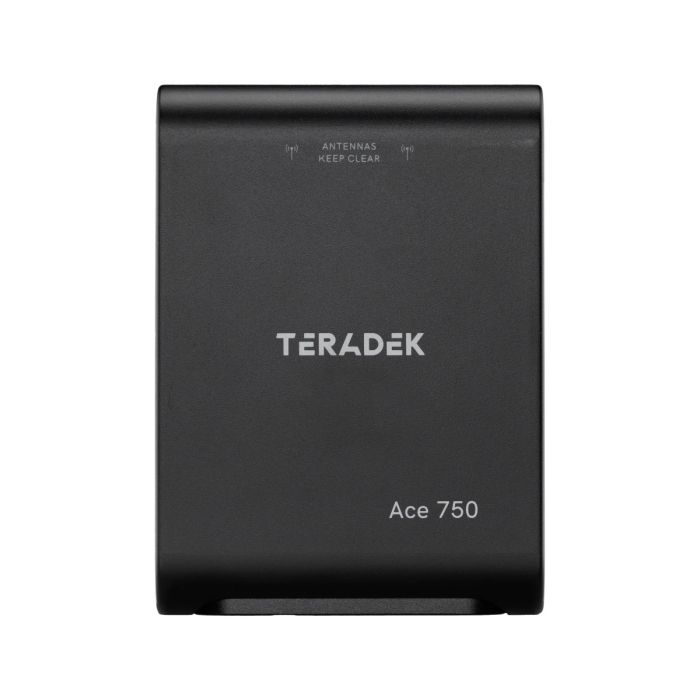

Teradek Ace 750 RX
by TeradekAce 750 RX is a lightweight, compact, HDMI wireless video receiver with built-in antennas that is designed to be used with mirrorless cameras, camcorders, action cameras and, A/V workflows.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- 1 x Lightstand Adapter 1/4-20in
- 1 x Ultra Thin HDMI Male Type A - HDMI Male Type A - 18in Cable
- 1 x PSU 18W AC Adapter 12VDC - 6ft Cable
- 1 x PTap to r/a barrel - 18in Cable
Ace 750 RX is a lightweight, compact, HDMI wireless video receiver with built-in antennas that is designed to be used with mirrorless cameras, camcorders, action cameras and, A/V workflows. It receives uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 RX features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate.
The transmitter (TX) and receiver (RX) units automatically detect and select the 5Ghz or 6GHz RF channel with the least interference and employ Auto-Frequency Switching to maintain optimal signal quality. The TX can send video to up to six RX devices at the same time using the Bolt Manager app for iOS or Android.
Ace 750 is built with the same reliable wireless technology found in our acclaimed Bolt product line. Because of this, Ace 750 is fully compatible with all Bolt 4K and Bolt 6 models.
| Video |
| Video Outputs |
| 1x HDMI 1.4b Type-A receptacle |
| Color Sampling |
| YCbCr 4:2:2 10-Bit RGB 4:4:4 8-bit |
| Delay Tx To Rx |
| <0.001sec |
| Supported Resolutions |
| Supported Resolutions |
| 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 |
| Video Processing |
| Video Compression |
| Visually Lossless |
| Audio Processing |
| Audio Compression |
| 48kHz 24-bit PCM |
| Outputs |
| Audio Output |
| Embedded HDMI Audio Input (2 channel) |
| Physical |
| Dimensions |
| 4.39" x 3.19" x 1" |
| Weight |
| 6.6oz (187g) |
| Construction |
| ABS Plastic / Milled Aluminium |
| Mountability |
| Multiple mounting options with M3 and 1/4-20” holes |
| Interfaces |
| Configuration Interfaces |
| OLED display - Input video format Selected frequency Video Quality % Link status |
| Switches |
| On/Off Switch |
| Mobile App |
| Bolt App |
| Desktop App |
| Bolt Manager application for OSX & Windows |
| Usb Interface Functionality |
| Upgrade via USB C |
| Bluetooth |
| Yes |
| Network |
| Antennas |
| 5x Internal 2dBi antennas (included) |
| Wireless |
| DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz |
| Rf Channel Selection |
| Auto only, 40 MHz only, no blocked frequencies |
| Encryption |
| AES-128, RSA-1024 key exchange |
| Rf Power |
| 17 dbm EIRP (<51mW transmit power) |
| Range |
| Up to 750 ft, line of sight |
| Unicast Multicast |
| Yes - 1 TX to 6 RX |
| Noise Rejection |
| Can coexist with WiFi and 5GHz cordless phones, can operate up to 4 sets in same location, |
| Interoperability Compatibility |
| Compatible with Bolt 4k and Bolt 6 products |
| Power |
| Power Input |
| Barrel connector 7-28V |
| Battery |
| None, optional Sony/Canon dual battery plate |
| Nominal Power Consumption |
| 8 Watts |
| Environmental |
| Operating Temperature |
| 0-40℃ |
