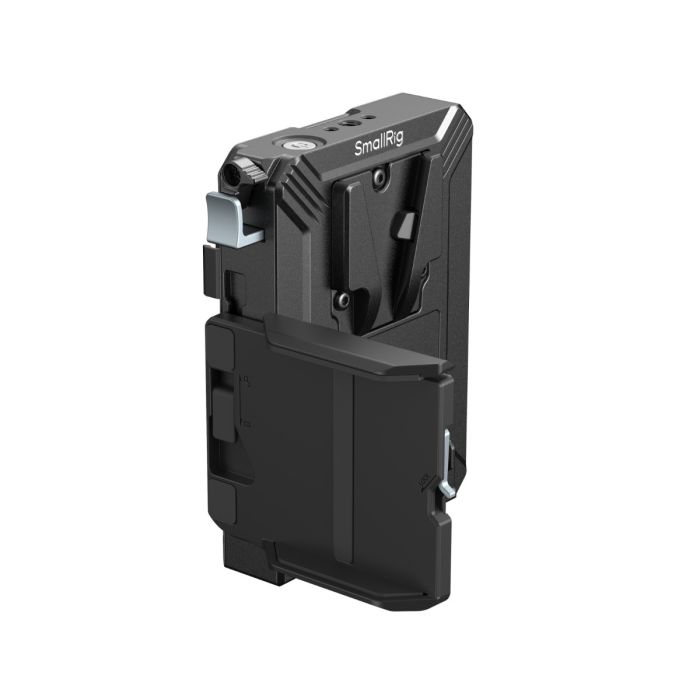

SmallRig V-Mount Battery Mount Plate Kit for 15mm LWS Rods 5226
by SmallRigMulti-Port Power Hub
Modular LCD Screen Protector
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- V-Mount Battery Plate x 1
- 15mm Dual Rod Clamp x 1
- LCD Screen Protector x 1
- Allen Wrench x 1
- Operating Instruction x 1
- User Manual x 1
SmallRig V-Mount Battery Mount Plate offers a streamlined solution for integrating V-mount batteries into your camera rig. Designed for rapid battery deployment and multi-device power distribution, this system includes a V-mount battery plate and a modular LCD screen protector. The plate securely attaches to compatible rigs, enabling swift battery swaps and uninterrupted power supply.
Strategically positioned power outputs, including D-Tap and USB-C, allow simultaneous power delivery to multiple devices without interfering with camera or top handle operation. The USB-C port supports up to 65W PD input, doubling as a V-mount battery charger. A trigger safety lever on the battery release button prevents accidental disengagement for secure operation.
The modular LCD screen protector features tool-free height and width adjustment, fitting most flip-screen mirrorless cameras while providing impact protection. Equipped with multiple 1/4"-20 threaded and locating holes, the V-mount plate facilitates the attachment of accessories such as magic arms (ID 3238B / 3873) for wireless transmitters and professional setups.
Additionally, the V-Mount Battery Mount Plate Kit 5226 is designed for 15mm LWS rod systems, featuring integrated dual rod clamps for rapid deployment , enabling a full powered rig setup directly on rods.
| Model | 5226 | 5228 |
| Compatible Battery | V-Mount Battery | |
| External V-Mount Battery Voltage | 11.0V–16.8V | |
| Recommended Battery Rated Capacity |
3500mAh–20000mAh / 14.8V (Nominal)
|
|
| D-Tap (Output Only) |
11.2V–16.8V / 8A (Max)
|
|
|
(Per D-Tap Port: 8A Max; Three-Port Combined: 18A Max)
|
||
| USB-C Input / Output |
USB-C1 Output / Input: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
|
|
|
USB-C2 Output / Input: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
|
||
|
PD3.0: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A
|
||
|
QC2.0 / AFC: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A
|
||
|
QC3.0: 5–12V ⎓ 3A
|
||
|
DCP 1.5A: 5V ⎓ 0.5–1.5A
|
||
|
PPS: 3.3–20V ⎓ 5A
|
||
|
APPLE 2.4A: 5V ⎓ 2.4A
|
||
| Discharge Cut-off Voltage |
11.2V (Prioritize battery's own cutoff voltage for protection to avoid over-discharge)
|
|
| Operating Temperature |
Charging: 0°C–45°C / 32℉–113℉
|
|
|
Discharging: -15°C–60°C / 5℉–140℉
|
||
| Storage Temperature & Humidity |
Stored for one month: -20°C–60°C / -4℉–140℉
|
|
|
Stored for three month: -20°C–45°C / -4℉–113℉
|
||
|
Stored for one year: -20°C–20°C / -4℉–68℉
|
||
|
(Humid environment)
|
||
| Product Dimensions | 138.5 x 107.4 x 83.0mm / 5.5 x 4.2 x 3.3in |
112.0 x 95.5 x 79.5mm / 4.4 x 3.8 x 3.1in
|
| Package Dimensions | 180.0 x 129.5 x 75.0mm / 7.1 x 5.1 x 3.0in |
162.0 x 122.5 x 69.0mm / 6.4 x 4.8 x 2.7in
|
| Product Weight | 310.8 ± 5.0g / 11.0 ± 0.2oz |
266.0 ± 5.0g / 9.4 ± 0.2oz
|
| Package Weight | 419.4 ± 5.0g / 14.8 ± 0.2oz |
362.2 ± 5.0g / 12.8 ± 0.2oz
|
| Material(s) |
Aluminum Alloy, Stainless Steel, Silicone, PC+Fiberglass
|
