Shimbol ZO600S

by Shimbol

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

ZO600S

Wireless Video Transmission up to 600'
1 x Transmitter & 1 x Receiver

875,50 KM 748,29 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

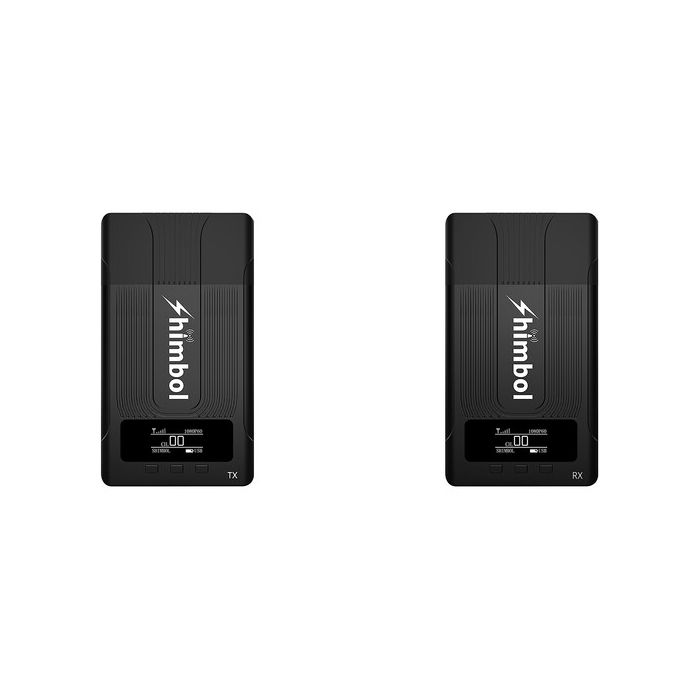

Shimbol ZO600S SDI & HDMI Wireless Video Transmission System
Transmitter
Receiver
USB Type-C Cable

Detalji

Add wireless monitoring to your video capture with the ZO600S SDI & HDMI Wireless Video Transmission System from Shimbol. Powered via USB Type-C input or Sony L-Series batteries, this compact transmitter and receiver set features pro-style SDI (BNC) and HDMI inputs and outputs. The Z0600S system transmits up to 1080p60 video with less than 1ms latency in a line-of-sight range up to 600'. The transmitter features one SDI input and one HDMI input and the receiver has one SDI output and one HDMI output for connecting to compatible monitors.

Up to 600' Range

Transmits high-quality video at rates up to 1080p60 wireless video in a line-of-sight range of 600'

SDI and HDMI Input/Output

The ZO600S transmitter incorporates one SDI (BNC) and one HDMI input for compatibility with a wide range of cameras, and the receiver features one SDI (BNC) and one HDMI output for linking to your monitors

Low Latency

Transmits video and audio with a low latency of approximately 80ms

Multipoint Transmitting

This system can transmit to multiple components including the receiver, smartphones, and tablets

Versatile Power Options

The transmitter and the receiver can each be powered using a USB Type-C source like a battery or power bank or by attaching an L-series battery to the integrated plate

Compact and Silent Design

These lightweight and compact units feature a fan-less design for quiet operation on set and interior antennas

OLED Screen

The transmitter and receiver both feature OLED screens that display the unit's status

Više informacija

Video I/O	Transmitter: 1x BNC (HD-SDI) Input
	Transmitter: 1x HDMI (Unspecified Signal) Input
	Receiver: 1x BNC (HD-SDI) Output
	Receiver: 1x HDMI (Unspecified Signal) Output
	Show Less
Embedded Audio	Not Specified by Manufacturer
Latency	80 ms
Video Format	HDMI
	1080p: 60/50/30/25/24
	1080i: 60/50
	720p: 60/50
	SDI
	1080p: 60/59.94/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	1080PsF: 30/29.97/25/24/23.98
	720p: 60/50
	Show Less
Battery Type	Transmitter: 1x L-Series
	Receiver: 1x L-Series
Power Consumption	Transmitter: 4.5 W
	Receiver: 3 W
Mounting	Transmitter/Receiver: 1x 1/4"-20 Female (Bottom)
Inputs/Outputs
Antenna I/O	No
Video I/O	Transmitter: 1x BNC (HD-SDI) Input
	Transmitter: 1x HDMI (Unspecified Signal) Input
	Receiver: 1x BNC (HD-SDI) Output
	Receiver: 1x HDMI (Unspecified Signal) Output
Embedded Audio	Not Specified by Manufacturer
Audio I/O	No
Power I/O	Transmitter: 1x USB-C Input
	Receiver: 1x USB-C Input
Encryption	No,
Wireless
Wireless Range	600' / 182.9 m (Line-of-Sight)
Frequency Range	5 GHz
Latency	80 ms
RF Power	21 dBm
RF Sensitivity	-80 dBm
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Cellular Support	No
Format Support
Video Format	HDMI
	1080p: 60/50/30/25/24
	1080i: 60/50
	720p: 60/50
	SDI
	1080p: 60/59.94/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	1080PsF: 30/29.97/25/24/23.98
	720p: 60/50
Audio Format	Not Specified by Manufacturer
Timecode Support	No
Power
Input Power	5 VDC
Battery Type	Transmitter: 1x L-Series
	Receiver: 1x L-Series
Power Consumption	Transmitter: 4.5 W
	Receiver: 3 W
Mounting
Mounting	Transmitter/Receiver: 1x 1/4"-20 Female (Bottom)
General
Status Display	Transmitter/Receiver: OLED
Environmental Resistance	No
Dimensions	Transmitter/Receiver: 4.4 x 2.5 x 0.8" / 113 x 63.5 x 20.5 mm
Weight	Transmitter: 5.64 oz / 160.00 g, Excluding Battery
	Receiver: 5.64 oz / 160.00 g, Excluding Battery
Packaging Info
Package Weight	1.15 lb
Box Dimensions (LxWxH)	6.6 x 4.9 x 2.8"
