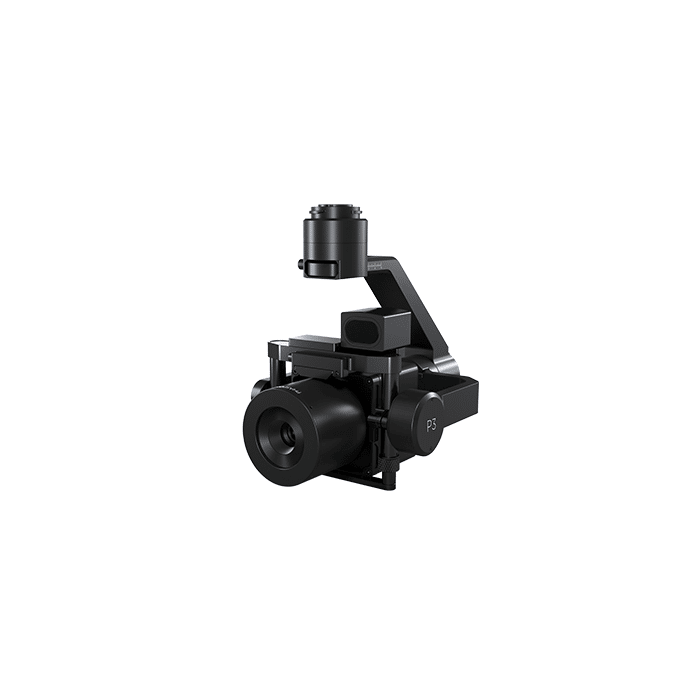

Phase One P3-100MP for AUTERION

Rok isporuke: Na upit

SKU

76021590

Best in class sensor performance
Largest image sensor
Smart focusing
3-Axis Stabilization
Medium format sensor 50/100

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

1 x Phase One P3-100MP for AUTERION

Detalji

The Phase One P3 is a highly versatile payload suitable for the DJI M300 RTK. The system offers a choice between a Phase One iXM 100mMP or 50MP camera, creating a wider range of potential applications.
The iXM range of cameras are expertly designed for UAV’s, combining responsiveness, robust design and easy integration with existing drones for a diverse range of inspection and mapping missions.
The P3 payloads excel in providing turnkey integration with the DJI M300 RTK platform and DJI Pilot APP. Ruling out the need to retrain your pilots, significantly reducing your time to market and bypassing potentially difficult integrations.

Više informacija

GENERAL
SUPPORTED AIRCRAFTS:	Matrice 300 RTK
GIMBAL TYPE:	3-axis (tilt, roll, pan)
INTERFACE TO AIRCRAFT:	Skyport 2.0
VIDEO STREAMING:	1920 x 1080 60p
WEIGHT WITH IXM-100 AND RSM 80MM AF LENS (KG):	2,6
POWER INPUT (VDC):	17 (from Skyport 2.0)
MAX. POWER CONSUMPTION (W):	22-24
SOFTWARE
FLIGHT PLANNING & OPERATION:	Mission Control
PROCESSING/EDITING:	Capture One
CAMERA	iXM 100MP
RESOLUTION:	11664 x 8750
DYNAMIC RANGE (DB):	83
ASPECT RATIO:	4:3
APERTURE RANGE:	f/5.6 – f/22
PIXEL SIZE (MM):	3.76
EFFECTIVE SENSOR SIZE (MM):	43.9 x 32.9
LIGHT SENSITIVITY (ISO):	50 – 6400
CAPTURE RATE (FPS):	sij.00
LENS MOUNT:	Phase One RSM
DATA STORAGE:	CF express/XQD card
RAW FILE COMPRESSION:	IIQ large – 100MB, IIQ small – 65MB
IR CUT-OFF FILTER:	Yes
RANGEFINDER
MAX. OPERATING RANGE (M):	180
ACCURACY (%):	1
DISTANCE RESOLUTION (CM):	1
PHOTOBIOLOGICAL SAFETY:	EN60825 class 1
GIMBAL
MECHNICAL RANGE (°):	Roll: +80.5 to -264.3, Pan: ±345, Tilt: -90 to +45
ANGULAR VIBRATION RANGE (°):	± 0.02
MAX. POWER CONSUMPTION (W):	8-10 (max. 50)
OPERATION MODES:	Locked, following
CONTROLLED ROTATION SPEED (°/S):	180
OPERATING CONDITIONS
APPROVALS:	FCC Class A, CE, RoHS
TEMPERATURE (°C):	0 to 40
HUMIDITY (%):	15 – 85 (non-condensing)
