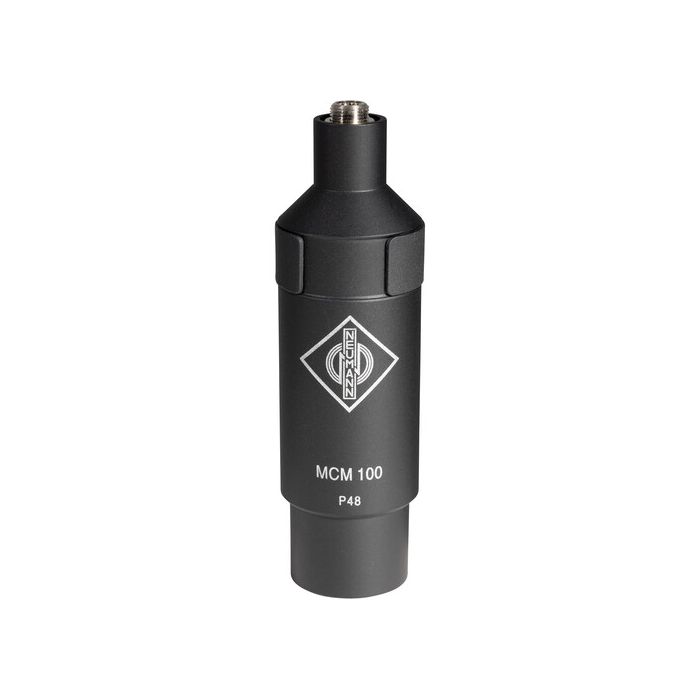

Neumann MCM 100
by Neumann
Raspoloživost Sarajevo:
Isporuka 20-30 dana
SKU
SEN-008695
XLR Output Stage for KK 14 MCM Capsule
For Wired Operation on XLR Mic Input
Phantom Powered: 48V
Locking 3.5mm TRS Female Input Connector
3-Pin XLR Male Output Connector
228,50 KM
195,30 KM
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Neumann MCM 100 XLR Output Stage Module for MCM Microphone System
Part of the modular Miniature Clip Mic (MCM) system, the Neumann MCM 100 is an in-line output stage module for the KK 14 capsule. It enables you to run the capsule on +48V phantom power from a traditional mic preamp when plugging the mic into a mixing board via a balanced XLR cable.
The MCM 100 is equipped with a 3.5mm TRS female input connector and a 3-pin XLR male output connector. The AC 31 cable (available separately) is required to connect the KK 14 capsule to the output stage module.
| Connector 1 | Input: 1/8" / 3.5 mm TRS Female, Locking |
| Connector 2 | Output: 3-Pin XLR Female |
| Rated Impedance | 50 Ohms |
| Rated Load Impedance | 1000 Ohms |
| Power Supply | 48 V, ±4 V (P48, IEC 61938), Phantom Power |
| Current Consumption | 3.5 mA |
| Dimensions | Diameter: 0.9" / 22 mm Length: 3.0" / 77 mm |
| Weight | 3.4 oz / 96 g |
