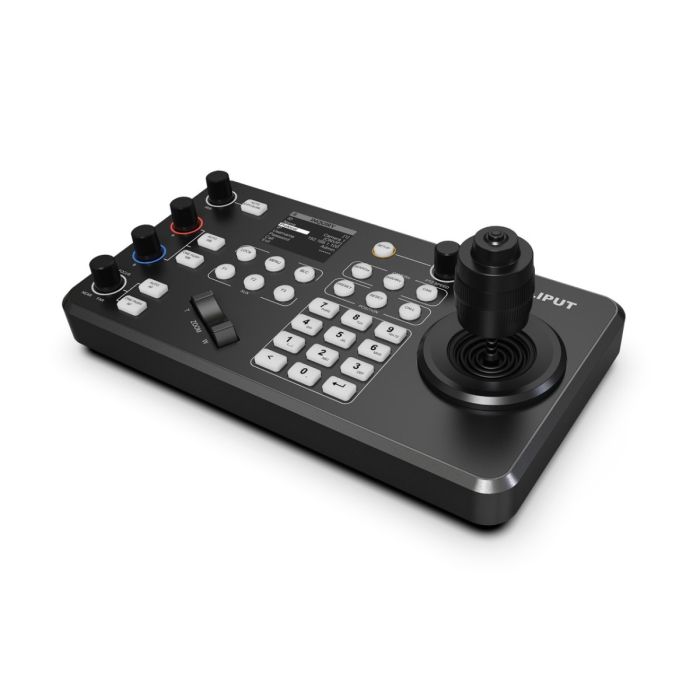

Lilliput K1 Professional IP & Serial PTZ Camera Joystick Controller
by LilliputThe controller offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Cross protocol mix control with IP/ RS 422/ RS 485/ RS 232
Control protocol by VISCA, VISCA Ove r IP, Onvif and Pelco P&D
Control up to 255 IP cameras on one single network
3 camera quick call up keys, or 3 user assignable keys
Tactile feel with professional rocker/seesaw switch for zoom controling
Auto search available IP cameras in one network and assign IP addresses easily
Multi color key illumination indicator directs operation to specific functions
Ally GPIO output for indicating the camera be currently controlled
Aluminum alloy housing with 2.2 inch LCD display, joystick, 5 rotation button
PoE and 12V DC power supplies
| CONNECTIONS | Interfaces | IP(RJ45), RS-232, RS-485/RS-422 |
| Control Protocol | IP Protocol: ONVIF, VISCA Over IP | |
| Serial Protocol: PELCO-D, PELCO-P, VISCA | ||
| Serial Baud Rate | 2400, 4800, 9600, 19200, 38400 bps | |
| USER INTERFACES |
||
| Display | 2.2 inch LCD | |
| Joystick | Pan/Tilt/Zoom | |
| Camera shortcut | 3 channels | |
| Keyboard | User-assignable keys×3, Lock×1, Menu×1, BLC×1, Rotation button×5,Rocker×1,Seesaw×1 | |
| Camera Address | Up to 255 | |
| Preset | Up to 255 | |
| POWER | Power | PoE/ DC 12V |
| Power Consumption | PoE: 5W, DC: 5W | |
| ENVIRONMENT | Working Temperature | -20°C~60°C |
| Storage Temperature | -40°C~80°C | |
| DIMENSION | Dimension(LWD) | 270mm×145mm×29.5mm/ 270mm×145mm×106.6mm(With joystick) |
| Weight | 1181g |
