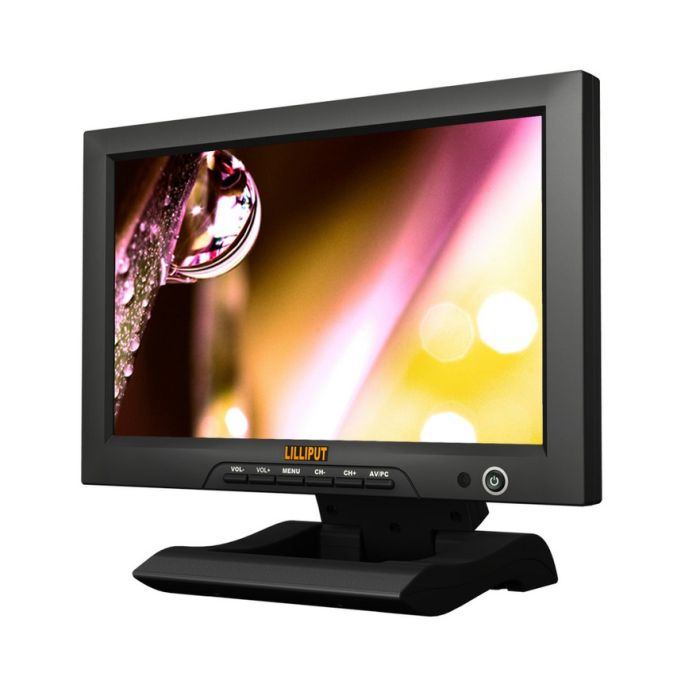

Lilliput FA1013 Monitor
by LilliputLilliput FA1013 10.1" Field Monitor.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Monitor Composite, Component, or HDMI sources with the Lilliput FA1013 10.1" Field Monitor. Featuring a sharp and bright 1024 x 600 LED LCD display, the FA1013 can display digital or analog SD and HD video signals, leveraging the 16:9 aspect ratio to avoid letterboxing HD video. The Component and Composite analog inputs have loop outputs for daisy-chaining other video equipment. Because of it's compact and portable design, the FA1013 can be implemented into studio, CCTV, A/V, and field production workflows.
As a field monitor, the FA1013 can be mounted in various ways for different purposes. The integrated stand allows for straightforward desk mounting, while 75mm VESA securing points open up more flexible installation options. Additionally, a 1/4"-20 mouting point is available for securing the FA1013 to your camera rig with a separately available arm. Along with the monitor, you'll receive an HDMI to mini-HDMI cable for connecting most common DSLR cameras and a 12V power supply.
|
DISPLAY
|
Panel | 10.1" LED backlit |
|---|---|---|
| Physical Resolution | 1024×600, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 250cd/㎡ | |
| Contrast | 500:1 | |
| Viewing Angle | 140°/110°(H/V) | |
|
INPUT
|
HDMI | 1 |
| YPbPr | 3(BNC) | |
| VIDEO | 2 | |
| AUDIO | 1 | |
|
AUDIO
|
Speaker | 1(build-in) |
| Audio Output | ≤1W | |
|
POWER
|
Current | 500mA |
| Input Voltage | DC 6-24V(XLR) | |
| Power Consumption | ≤6W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ | |
|
DIMENSION
|
Dimension | 259 x 170 x 36.5mm(LWD) |
| Weight | 1144g |
