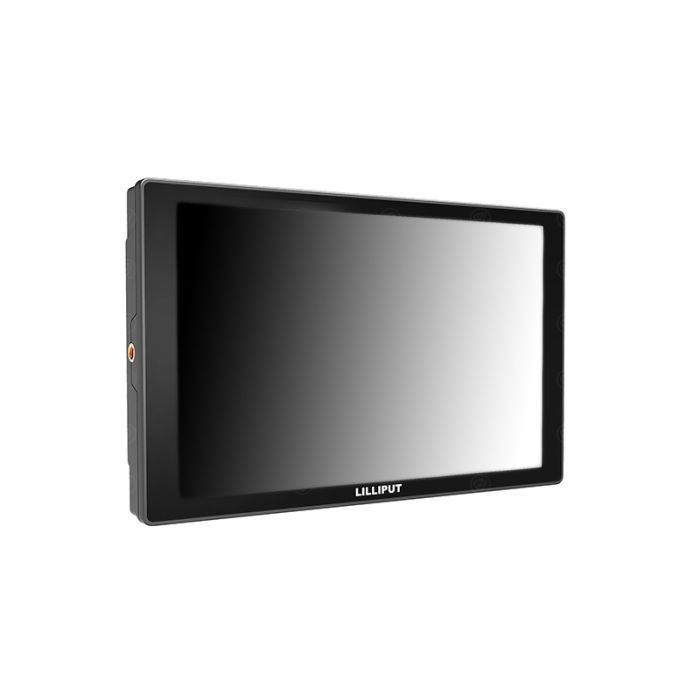

Lilliput A11 Monitor

Lilliput A11 4K camera top monitor
HDMI & 3G-SDI support
G + G technology
Level Meter, Histogram, Check Field, Peaking, False Color, Image Flip, Overscan, Underscan, Image Freeze
Center and screen markers
8-bit IPS LED backlight technology
built-in stereo speakers
Powered by AC adapter or NP-F battery

Features:

Resolution: FHD (1920 x 1200)
Picture Size: 16 : 10
Brightness: 300 Nits
Contrast Ratio: 1000: 1
Viewing Angle (H / V): 175 ° / 175 °
8 Bit IPS LED Backlight Technology
Built-in Stereo Speakers
Powered by AC adapter or NP-F battery mount (also available as optional) V-Mount or Gold-Mount available)
Runtime according to the manufacturer with a NP-F970 battery: 4 hours
4x 1/4 "thread, for vertical or horizontal mounting

Features:

Level Meter
Exposure
Peaking
Aspect Ratio
False Color
Zoom
Histogram
Check Field
Image Flip
Overscan
Underscan
Image Freeze
Grid
Center Marker
Screen Marker
Color Temperature

Connections:

1x 3G-SDI / HD-SDI / SDI In
1x 3G-SDI / HD- SDI / SDI Out (Loop Through)
1x HDMI 1.4 In (Supports 4K @ 30Hz)
1x HDMI 1.4 Out (Supports 4K @ 30Hz)
1x VGA In
1x USB In (for Software Updates)
1x headphones, 3.5 mm stereo jack (f)

General:

Dimensions (WxHxD): 25.2 x 15.7 x 2.5 cm
Weight: approx. 550 g
Power supply: DC in, 7 - 24 V. or via various optional battery mounts
External power supply is guaranteed only with Lilliput own power supply to 100%, because the Lilliput hollow plug connections may deviate from the regular measures
Power consumption: max. 13 W

Included Accessories:

AC adapter
VESA Battery Mount for Sony NP-F Batteries
HDMI cable
Sun protection
hot shoe adapter

Optional accessories:

V-Mount battery plate
gold Mout battery plate
VESA stand
Gimbal Bracket
