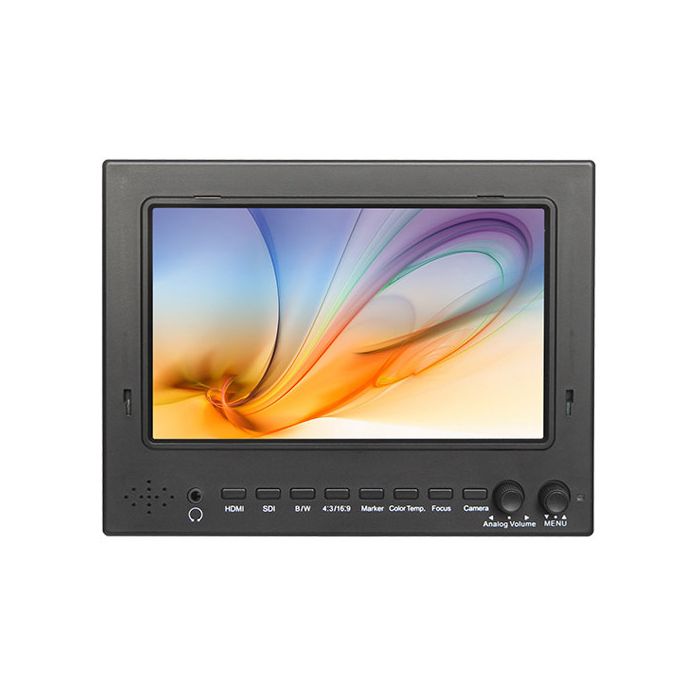

Feelworld ST-702HSD SDI monitor

Resolution

1024 x 600 pixels

Dot Pitch

H x V: 0.05 x 0.15 mm

Aspect Ratio

16:9

Brightness

600 cd/m²

Contrast

800:1

Viewing Angle

85°/85°(L/R)
85°/85°(U/D)

Backlight

LED

SDI

1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576i
480i

HDMI

1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29/25/24/23.98
576p / 576i
480p / 480i

Input

1 x SDI
1 x HDMI

Output

1 x SDI
1 x HDMI

Audio

1 x Speaker
1 x Earphone slot

Input Voltage

6 to 24 VDC

Power Consumption

≤ 9 W

Working Temperature

-4 to 122°F (-20 to 50°C)

Storage Temperature

-22 to 149°F (-30 to 65°C)

Threads

1/4"-20 thread socket on all four sides

Dimensions

7.6 x 5.8 x 1.1" (19.4 x 14.8 x 2.9 cm), without sunshade
7.6 x 5.9 x 2.4" (19.4 x 15.0 x 6.2 cm), with sunshade

Weight

18 oz (512 g), with battery plate
23.5 oz (669 g), with battery plate and sunshade

Package Weight

2.405 lb

Box Dimensions (LxWxH)

11.45 x 7.6 x 3.4"
