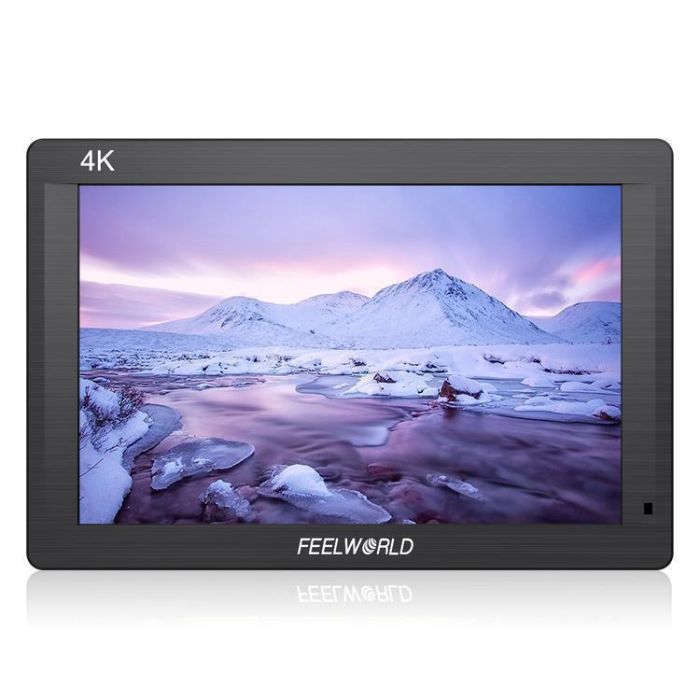

Feelworld FH7 HDMI monitor
by FeelWorld1. High Resolution: Full HD 1920x1200
2. High Contrast: 1200:1
3. High Brightness: 450cd/m²
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Feelworld FH7 HDMI monitor
- 1× Mini HDMI Cable
- 1× Sunshade
- 1× Hot Shoe Mount
- 1× F970 Battery Plate
More Auxiliary Functions
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.
With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), The pixel density of the FH7 packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can't define individual pixels. Sharper images, brings you the perfect visual experience.
Precise Color to fuel your creative flow
Richer, Brighter, Most Colorful
IPS Wider View Angle 160°
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. FH7 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.
True Color . Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 23.1mm thickness 310g the FH7 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
The compact design of the FH7 includes HDMI input/ output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker.
4K HDMI Input/ Output
Support most DSLRs and camcorders.
4K HDMI Loop-out
The FH7 has both HDMI in and loop-out , allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
Standard Hot Shoe Mount 360° Rotation
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.
New Generation Collapsable Sunshade
For easier viewing in bright environments. FH7 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.
Flexible Battery System
The FH7 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional).
Display Spec.
|
Model |
FH7 |
|
Screen Size |
7" IPS |
|
Resolution |
1920x1200 pixels |
|
Pixel Pitch |
0.07875 (H) x 0.07875 (W) (mm) |
|
Aspect Ratio |
16:10 |
|
Brightness |
450cd/m² |
|
Contrast Ratio |
1200:1 |
|
Backlight |
LED |
|
Viewing Angle |
80°/80°(L/R) 80°/80°(U/D) |
Input
|
1 X HDMI |
HDMI |
Output
|
1 X HDMI |
HDMI |
Audio
|
Audio |
Stereo Headphone, Speaker |
HDMI Input/ Output Support Format
|
480i/576i/480p/576p |
|
1080i (60/59.94/50) |
|
720p (60/59.94/50/30/29/25/24/23.98) |
|
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
General
|
Input Voltage |
DC7~24V |
|
Power Consumption |
≤8W |
|
Working Temperature |
-20°C~55°C |
|
Storage Temperature |
-30°C~65°C |
|
Install Way |
1/4"-20 Thread Socket (bottom) |
|
Battery Plate |
F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |
|
Unit Size |
180Lx120Hx23.1D (mm) |
|
Unit Weight |
310g/340g (With F970 Plate) |
|
Color Box Size |
222L*158W*76H(mm) |
|
Outer Carton Qty |
10 |
|
Outer Carton Size |
450*234*385 (mm) |
|
Gross Weight |
9.5kgs |
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
|
* Brightness Histogram |
|
* Embedded Audio |
|
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
|
* False Colors |
|
* Zebra Exposure (1-100IRE adjustable) |
|
* Check Field (Red, Green, Blue, Mono) |
|
* Scan Mode (Under Scan, Over Scan) |
|
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
|
* Image Flip (H, V, H/V) |
|
* Image Freeze |
|
* Center Marker |
|
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
|
* Ratio Marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
|
* Color Temperature Adjustment |
|
* Nine Grid (Zoom one of the images to realize the full screen) |
|
* Zoom (4X, 9X, 16X) |
|
* Aspect Ratio |
|
* Pixel to Pixel |
|
* Zoom All |
|
* U/D Zoom |
|
* L/R Zoom |
