DPA SCO60F00-H d:screet Omni Mic, Heavy Duty, Hi-Sens, Beige, MicroDot
by DPAOmnidirectional Polar Pattern, 20 to 20 kHz Frequency Range, Heavy Duty Stainless Steel Housing, High Sensitivity Capsule
MicroDot Connector Included
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- 1 x DPA SCO60F00-H d:screet Omni Mic, Heavy Duty, Hi-Sens, Beige, MicroDot

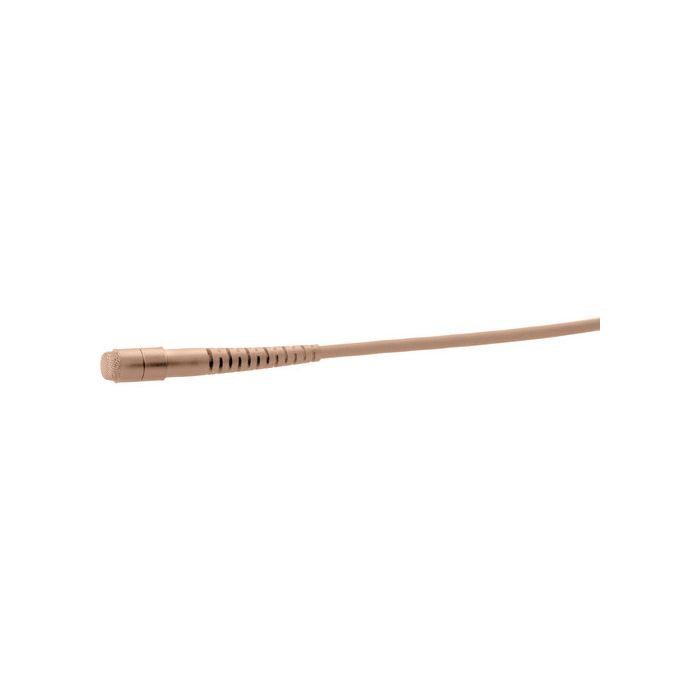

The beige d:screet Heavy Duty Omni Microphone, Hi-Sensitivity with MicroDot Connector from DPA Microphones is a miniature microphone for capturing audio. It is used in various environments in applications where you require the maximum amount of security such as in theater, television, and more. This microphone features the 4060 high sensitivity capsule. It is used where visual size is of less importance. It features an omnidirectional polar pattern and has a frequency range of 20Hz to 20kHz.
This d:screet omnidirectional microphone is built with a heavy-duty stainless steel housing, a heavy-duty cable relief, and a thick 2.2mm cable. With a large selection of optional accessories available it can be used for wireless or hardwired applications. A carry case, soft boost grid, and a high boost grid are included.
- Heavy Duty Miniature Microphone
- Durable and built with a stainless steel housing and features a heavy-duty cable relief and a thick 2.2mm cable
- A Small Footprint
- A great choice for any application requiring a big sound and a small footprint
| Directional Characteristic | Omnidirectional |
| Principle of Operation | Pressure |
| Cartridge Type | Pre-polarized condenser element with vertical diaphragm |
| Frequency Range | +/- 2 db: Soft boost grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High boost grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity | 20 m V/Pa, -34 dB re. 1 V/Pa (+/- 3 dB at 1 kHz) |
| Equivalent Noise Level | Typ. 23 dB (A) re. 20 µPa (max. 26 dB (A)), A-weighted Typ. 35 dB (max. 38 dB) ITU-R BS.468-4 |
| Signal to Noise Ratio | 71 dB (A) A-weighted, re. 1 kHz at 1 Pa, 94 dB SPL |
| THD | < 1 % THD up to 123 dB SPL peak, < 1 % THD up to 120 dB SPL RMS sine |
| Dynamic Range | Typ. 100 dB |
| Maximum SPL | 134 dB peak before clipping |
| Output Impedance | 30 to 40 Ω |
| Cable Drive Capability | Up to 984' (300 m) |
| Power Supply | For Wireless Systems: Min. 5 V - max. 50 V through DPA adapter With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance |
| Connector | MicroDot |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
| Temperature Range | -40 to 113 ° F (-40 to 45 ° C) |
| Relative Humidity | up to 90% |
| Cable | Length: 6" (1.8 m) Diameter: 0.09" (2.2 mm) |
| Dimensions (L x Diam) | Microphone: 0.5 x 0.2" (12.7 x 5.1 mm) |
| Weight | 0.26 oz (7.5 g) including cable and MicroDot connector |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
