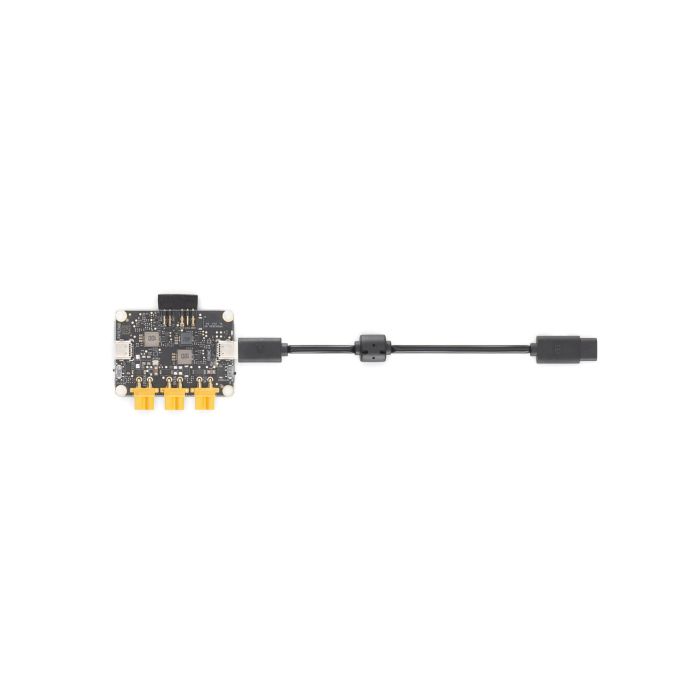

DJI E-Port Development Kit

by DJI

Raspoloživost Sarajevo: Isporuka 7-10 dana

Raspoloživost Zagreb: Dostupno

SKU

CP.EN.00000459.01

Convert the aircraft E-Port into multiple standard hardware ports. Convenient for connecting hardware equipment, SDK development, and debugging.

128,00 KM 109,40 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

E-Port Adapter Board × 1
Pin Header Protector × 1
E-Port Coaxial Cable (150 mm) × 1
XT30 to USB-C Power Cable (300 mm) × 1
XT30 to DC5.5 Power Cable (300 mm) × 1

Detalji

Convert the aircraft E-Port into multiple standard hardware ports. Convenient for connecting hardware equipment, SDK development, and debugging.

The development kit can convert the E-Port of the aircraft into multiple standard hardware ports like the XT30 Power Output Ports, USB 2.0 Port, and UART/PPS Signal Port, making it convenient for developers to connect hardware equipment and perform SDK development and debugging.

Tips

When using the adapter board, make sure to place it in an appropriate position to avoid short circuits caused by contact between the adapter board and the aircraft arm.
If the adapter board is integrated into a payload product, make sure to design a heat dissipation system and a metal shielding cover.
If any sparks, smoke, strange smells, or other abnormalities are detected, disconnect the adapter board from the power source immediately.
When all three XT30 power ports are used, the total output power should be smaller than the max output power of the aircraft. Make sure to develop payloads within the output specifications.

Compatibility

Matrice 350 RTK
Matrice 300 RTK
Matrice 30/30T
DJI Mavic 3E/3T

Više informacija

Adapter Board Dimensions	55×40×9 mm (L×W×H)
XT30 VCC Power Output
DJI Mavic 3E/3T	12-17.6 V/4 A
Matrice 30 Series	19.2-26.1 V/4 A
Matrice 300 RTK	24 V/4 A
Matrice 350 RTK	24 V/4 A
XT30 12V Power Output	12 V/2 A
XT30 5V Power Output	5 V/2 A
