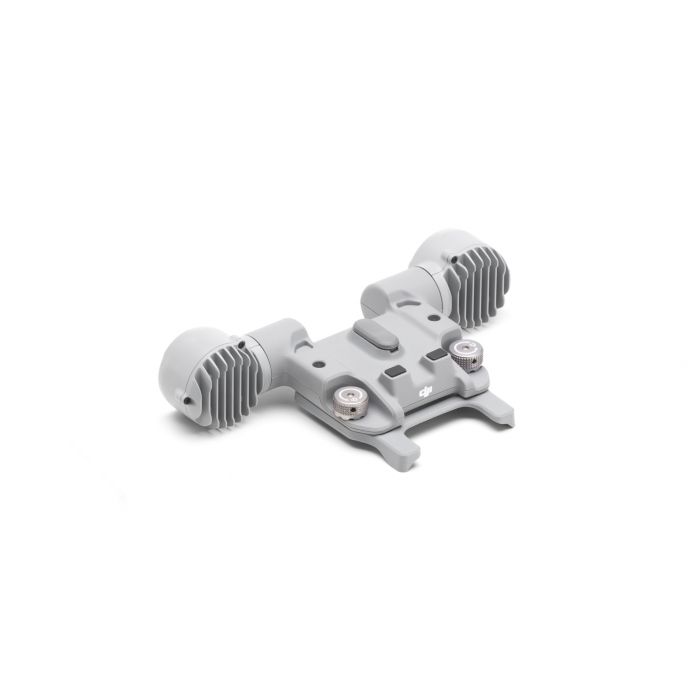

DJI AL1 SpotLight
by DJIThe spotlight supports two modes: always-on and strobe, providing clear illumination of subjects. It also links with the gimbal.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Spotlight × 1
- Spare Screw × 2
- Hex Key × 1
The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. [1] Additionally, it can intelligently link with the gimbal, following the camera's movements to ensure the illuminated area matches the camera's view. It also offers a wide fov lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.
Highlights
The spotlight supports two modes: always-on and strobe, providing clear illumination of subjects. It also links with the gimbal.
Tips
1. Tighten the screws to ensure secure installation. When installing on the aircraft for long-term use, use the included hex key to tighten the screws again after installation.
2. Activate the spotlight following the app prompts after installation. If a firmware update is available, please upgrade to the latest version promptly.
3. The performance of the Matrice 4 Series aircraft's propulsion and vision system will be affected after the spotlight is mounted. Fly with caution.
4. DO NOT point the spotlight directly at people’s eyes.
5. The spotlight may become hot after prolonged operation. Please be careful to avoid burns.
Compatibility
- Support for use with DJI Matrice 4 Series aircraft.
1. This effect is based on a distance of 100 meters from the subject and is for reference only.
| Weight | 99 g (including bracket) / Approx. 91 g (excluding bracket) |
| Dimensions | 95×164×30 mm (L×W×H, including bracket) / 79×164×28 mm (L×W×H, without bracket) |
| Max Power | 32 W |
| Illuminance | 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters |
| Effective Illumination Angle | 23° (10% relative illuminance) |
| Effective Illumination Area | 1,300 square meters @ 100 meters (Normal Mode), 2,200 square meters @ 100 meters (Wide fov Mode) |
| Modes | Always-on and strobe |
| Gimbal Mechanical Range (Tilt) | -135° to 45° |
| Gimbal Controllable Range (Tilt) | -90° to 35° |
| Max Control Speed (Tilt) | 120°/s |
| Gimbal Alignment Accuracy | ±0.1° |
| Operating Temperature | -4° to 122° F (-20° to 50° C) |
| Mounting Method | Quick-release hand-tightened screws |
