Canon EU-V3 Expansion Unit

by Canon

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

5931C001AA

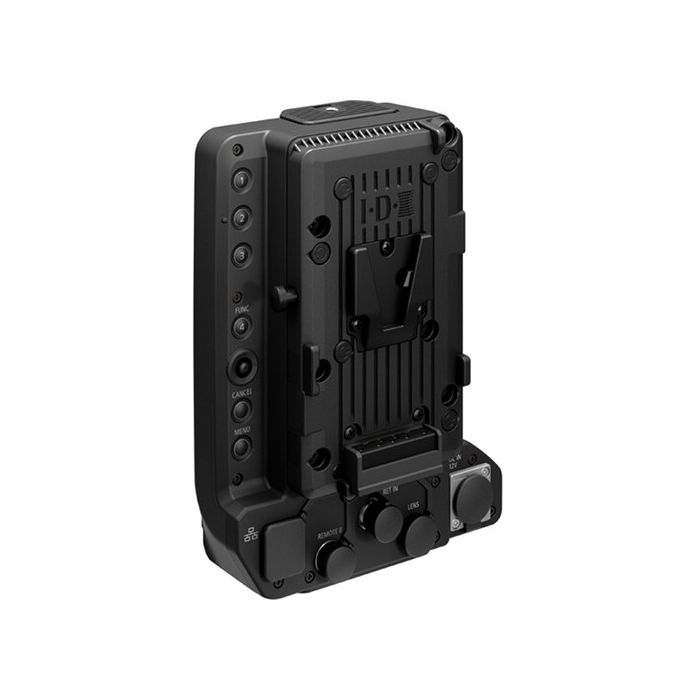

The Canon EU-V3 Expansion Unit mounts easily on your C300 Mark III or C500 Mark II camera, providing multiple interfaces for easier integration with a studio or live production setup.

KM 6.835,00 KM 5.841,88

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Canon EU-V3 Expansion Unit
Terminal Cap
Hex Socket Head Bolt (M4)

Detalji

The Canon EU-V3 Expansion Unit mounts easily on your C300 Mark III or C500 Mark II camera, providing multiple interfaces for easier integration with a studio or live production setup. The EU-V3 expansion unit is powered via the 4-pin XLR DC input or using a battery and the V-mount plate. This unit provides a D-Tap output, return video, tally, Ethernet/XC protocol, RS-422 Remote B, and RJ45 Ethernet interfaces plus a 4-pin Hirose 12V output and 12-pin lens port.

For C300 Mark III, C500 Mark II
V-Mount Plate, 4-Pin XLR DC Input
SDI Return Video, D-Tap Output
Tally Signal, RJ-45 Ethernet Jack
Input via Ethernet Interface/XC Protocol
RS-422 Control via "Remote B" Port
12V Output via 4-Pin Hirose Interface
12-Pin Interface for Lens Power

Compatibility

Canon C300 Mark III
Canon C500 Mark II

Više informacija

General
Compatibility	Canon C300 Mark III
	Canon C500 Mark II
Battery Plate	V-Mount
Inputs / Outputs
Connector 1	1x 4-Pin XLR Power
Connector 2	1x RS-422 Control
	1x RJ45 Ethernet
	1x 4-Pin Hirose (12V)
	1x 12-Pin Lens Interface
	1x D-Tap Output
Physical
Dimensions	7.4 x 5.6 x 4" / 18.8 x 14.2 x 10.2 cm
Weight	1.5 lb / 680 g
Packaging Info
Package Weight	2.35 lb
Box Dimensions (LxWxH)	11.1 x 8 x 7.3"
