Blackmagic Design Mini Converter - SDI Distribution
by Blackmagic DesignBlackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Blackmagic Design Mini Converter SDI Distribution
- 12V Universal Power Supply with International Socket Adapters for All Countries

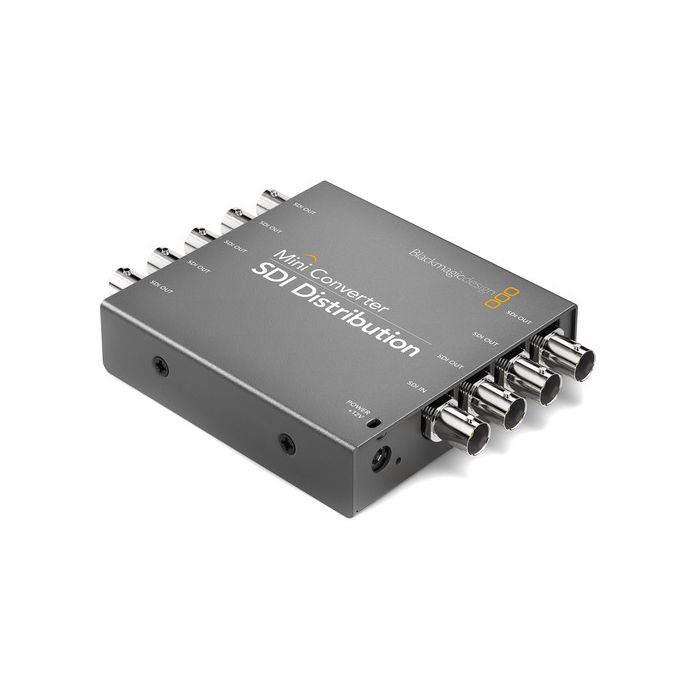

The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.
The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
| Inputs | 1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI |
| Outputs | 8x SDI: Automatically match the SDI video input |
| Re-clocking | Yes |
| Supported Formats | NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M |
| Video Sampling | 4:2:2 and 4:4:4 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| Color Precision | 4:2:2 and 4:4:4 |
| Color Space | YUV and RGB |
| ASI Support | Yes |
| Power Supply | 12V universal power supply included |
| Power Consumption | 110V: 40mA 220V: 20mA |
| Voltage Range | 12-30V |
