Blackmagic Design 2110 IP SDI to HDMI 12G

by Blackmagic Design

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

CONVNVIPM/12G/HDMI02

Converts from 12G-SDI or 2110 IP to HDMI
Rackmount Design, Front Panel Controls

1.064,00 KM 909,40 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

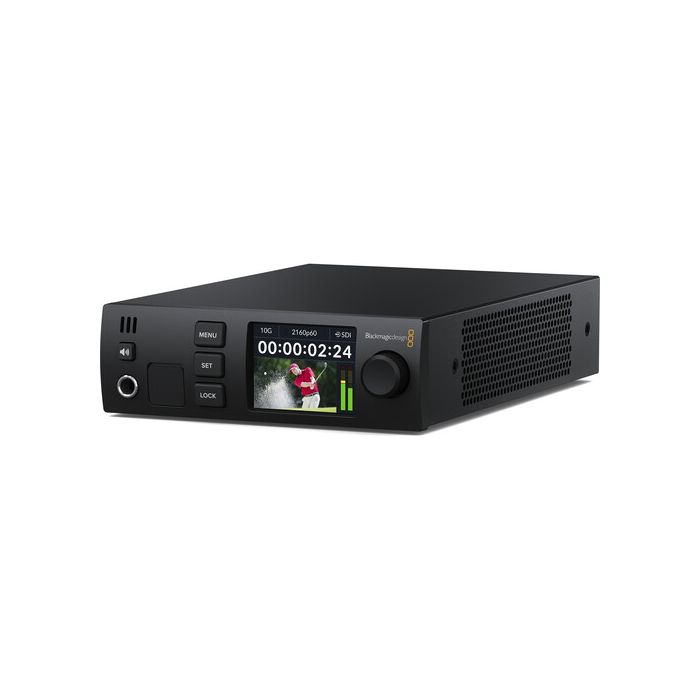

Blackmagic Design 2110 IP SDI to HDMI 12G Converter

Detalji

The 2110 IP SDI to HDMI 12G Converter from Blackmagic Design converts signals from 12G-SDI or 2110 IP to HDMI to facilitate the usage of the latest OLED displays for color-accurate monitoring, color grading, or editing. two XLR analog outputs provide two channels of audio monitoring via optional external speakers. A headphone jack on the front panel allows users to monitor audio in a more conservative manner for applications where multiple operators are working on projects side by side.

Variable gain and audio delay provide spot-on audio and video synchronization, with support for 3D LUTs for accurate monitor calibration. Designed to seamlessly integrate SDI gear with 2110 IP broadcast systems, the versatile converter offers an LCD for audio/video monitoring and menus, front-panel controls, and redundant power supply options for worry-free reliability.

Više informacija

Video I/O	Input
	1x BNC (12G-SDI)
	Output
	1x BNC (12G-SDI) (Loop Output)
	Output
	1x HDMI (Unspecified Signal)
	Show Less
Audio I/O	Output
	2x XLR 3-Pin Analog Male
	1x 1/4" TRS Stereo Analog Female
Video Resolution	SDI Input/Output
	3840 x 2160 up to 60 fps
	HDMI Input/Output
	3840 x 2160
	RJ45 Input/Output
	3840 x 2160 up to 60 fps
	Show Less
Audio Format	Analog Output
Broadcast System Compatibility	NTSC, PAL
Wireless	No
Audio I/O	Output
	2x XLR 3-Pin Analog Male
	1x 1/4" TRS Stereo Analog Female
Other I/O	Input/Output
	1x RJ45 (10 GbE)
	Input
	1x 1/4" TRS (Remote)
Expansion Slots	No
Latency	No
Video Resolution	SDI Input/Output
	3840 x 2160 up to 60 fps
	HDMI Input/Output
	3840 x 2160
	RJ45 Input/Output
	3840 x 2160 up to 60 fps
Audio Format	Analog Output
Embedded Audio	HDMI/LAN (RJ45)/SDI
Standards
Video Standard Compliance	SMPTE: ST-2110
Broadcast System Compatibility	NTSC, PAL
Hardware
Wireless	No
Display	LCD
Power
Power I/O	1x IEC C13 Input
	1x Barrel (12 VDC ) Input
General
Rack Form Factor	1 U
