AJA U-TAP-SDI

by AJA

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

VZ-30597193

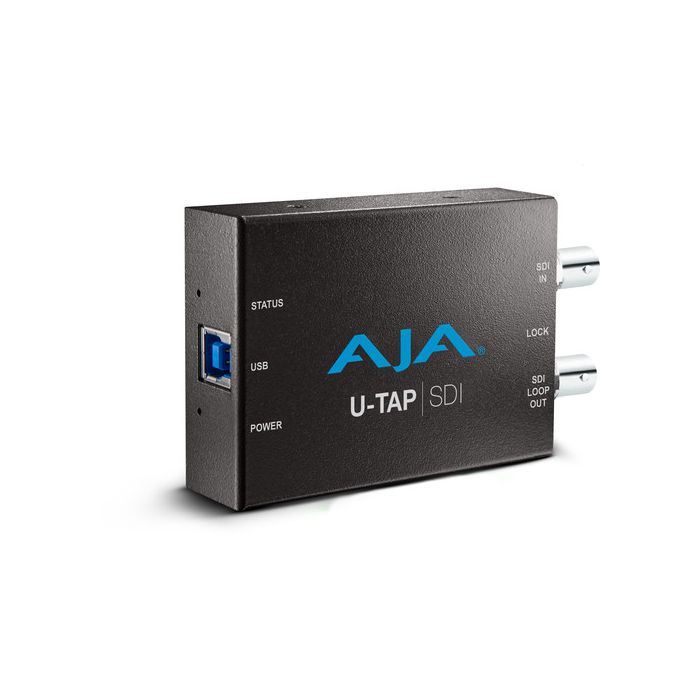

Capture 3G-SDI video on your computer or laptop with this U-TAP USB 3.1 Gen 1 Powered SDI Capture Device from AJA. The compact converter fits in your pocket and features a 3G-SDI input, a 3G-SDI output, and a USB 3.1 Gen 1 Type-B output.

KM 1.088,00 KM 929,91

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

AJA U-TAP USB 3.1 Gen 1 Powered SDI Capture Device
USB Type-B to USB Type-A Cable

Detalji

The U-TAP SDI supports frame rates up to 1080p60 and supports auto-scaling. The SDI loop-through outputs the source SDI signal to monitors, switchers, and other destinations. Embedded stereo audio is also supported and sent through the USB output to your computer. A wide range of Windows, macOS, and Linux software is supported, and no additional drivers are required. The unit is powered over the USB Type-B connection using the included cable.

USB 3.1 Gen 1 Type-B host output interface, 3G-SDI input up to 1080p60, and 3G-SDI loop output to monitors
UVC and UAC compatible on macOS, Windows, and Linux, negating the need for additional drivers
Powered using the USB Type-B port
Two-channel 24-bit, 48 kHz audio input
Auto-scaling support

Više informacija

Host Connection

USB Type-B (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)

Input

Video Input Connectors	1 x BNC (3G-SDI) Female
Input Video Format	SDI WUXGA (1920 x 1200): 25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 50/59.94/60 fps 576p: 25/29.97/30/50/59.94/60 fps 480p: 25/29.97/30/50/59.94/60 fps PAL NTSC
Audio Input Connectors	None
Input Audio Format	Analog: 48 kHz / 24-Bit
Embedded Audio Input	SDI: 2-Channel

Output

Video Output Connectors

1 x BNC (3G-SDI) Female (Loop Output)

Standards

Video Standard Compliance	SMPTE 259M/292M
OS Compatibility	Windows macOS Linux
Power Connector	None
Power Consumption	Device: 5 VDC (6.5 W)

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	10 to 90%

General

Dimensions	4.1 x 2.4 x 1" / 10.41 x 6.1 x 2.54 cm
Weight	0.3 lb / 0.14 kg
Warranty Length	Limited 3-Year Warranty

Packaging Info

Package Weight	0.85 lb
Box Dimensions (LxWxH)	7.25 x 5.5 x 4.05"
