Vinten FHR-155 VR Head

by Vinten

Rok isporuke: 20-30 dana

SKU

V4155-0013

Near-Silent Robotic Operation
Supports up to 155 Pounds
22-Bit Encoding for Use with VR Engines
Smooth Camera and Lens Motion Control

76.415,50 KM 65.312,39 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

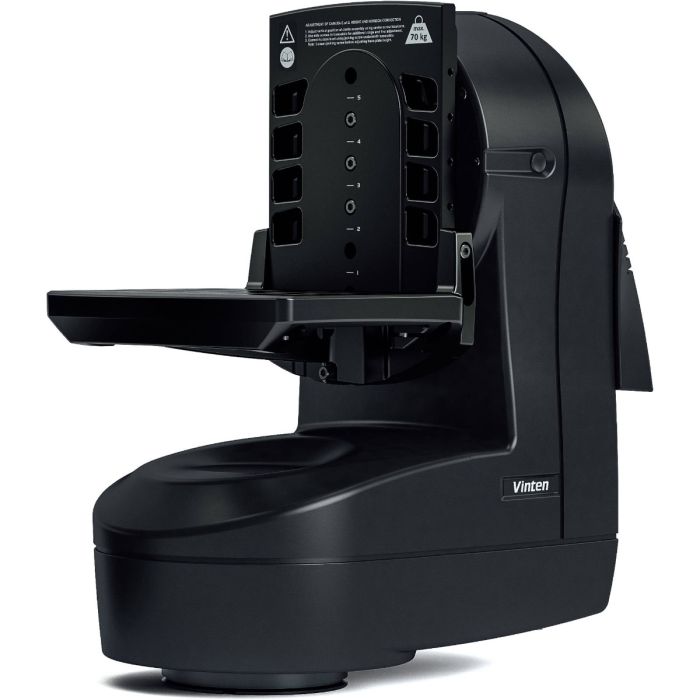

Vinten FHR-155 Robotic VR Head with 22-Bit Encoder
Camera Cradle (Comprising Backplate and Mounting Plate)
3 x Center Screw
Cable Management Bracket
Power Cable (10')
CAT 5e Ethernet Cable (10')
5 x Cable Tie
3 x M4 Countersunk Screw
2 x 3/8" BSW x 3/4" Cap Head Screw
4 x 3/8" Head Fixing Bolt
Vinten Spanner (for Head Fixing Bolt)
5mm Allen Key
5/16" Allen Key
5/64" Allen Key
Flat Blade Screwdriver
Limited 1-Year Warranty

Detalji

The Vinten FHR-155 Robotic Head is a fully functional robotic head. Suitable for studio or remote work, the head is nearly silent and supports up to 155 pounds.

It features built-in 22-bit encoders that output precise information for incorporating the head's movements into VR shots. It has a cradle to adjust the center of gravity and balance of your camera on the head for best results.

The head features accurate and highly repeatable motion control of the camera as well as compatible Canon and Fujinon servo-controlled lenses.

The head can tilt a total of 100° (50° down and 50° up), and can pan 359°. The built-in 3-port Ethernet switch simplifies integration with robotic pedestals and IP prompting equipment. Mounting the head on a tripod or pedestal requires an optional mounting adapter.

Near-Silent Robotic Operation
Supports up to 155 Pounds
22-Bit Encoding for Use with VR Engines
Smooth Camera and Lens Motion Control

Više informacija

Payload 155 lb / 70.31 kg
Pan & Tilt Range Pan: 359°
Tilt: ±50°
Drag Control Continuous Drag Adjustment, Servo Controlled
Angular Speed Velocity: 0.05 to 60°/s
Acceleration Typical: 60°/s2
Acceleration Peak: 120°/s2
Lens Control Canon Lenses: Full-Servo
Fujinon Lenses: Full-Servo
Encoders 22-Bit
Genlock Black Burst / Tri-Level
Connectors Power: powerCON
Ethernet: 3 x RJ45
Genlock: 1 x Micro BNC
Aux Port: 26-pin
LANC Port
Shot Recall Repeatability ±60 Arcseconds (±0.016°)
System Resolution / Accuracy 22-bit, >0.01˚
Rated Load Inertia 16.53 lb ft2 / 7.5 m2 kg
Motor Noise 41dBA at Max Speed
Network IP Ethernet
Power Input: 100 to 240 VAC, 50/60 Hz
Consumption: 175 W
Fuse Protection 250 VAC, 3.15 A
Temperature Range 41 to 104°F / 5 to 40°C
Dimensions 19.29 x 17.17 x 9.25" / 490 x 436 x 235 mm
Weight 49.6 lb / 22.5 kg
