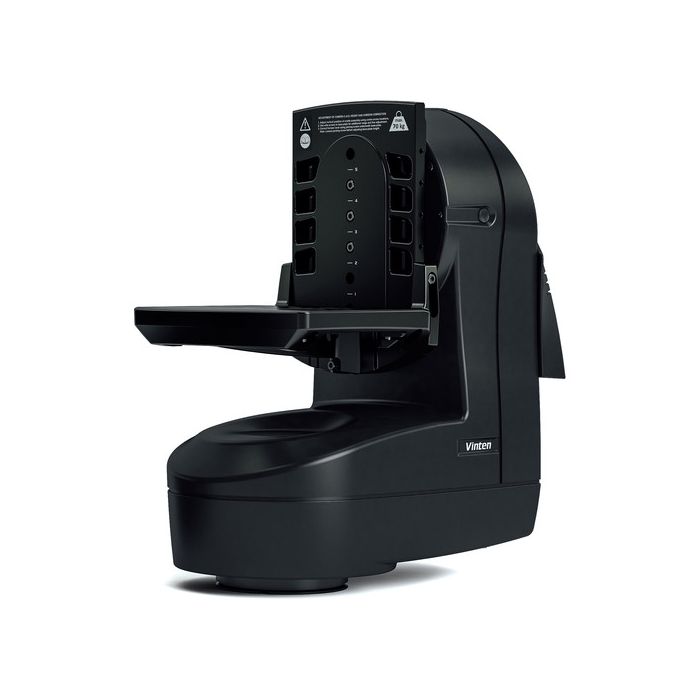

Vinten FHR-155 Head with integrated StarTracker

by Vinten
Rok isporuke:  20-30 dana
SKU
V4155-0012
The Vinten FHR-155 Robotic Head with Integrated StarTracker System is a fully functional robotic head. Suitable for studio or remote work, the head is nearly silent and supports up to 155 pounds.
133.729,50 KM 114.298,72 KM

Sadržaj pakovanja

Vinten FHR-155 Robotic Head with Integrated StarTracker System Camera Cradle (Comprising Backplate and Mounting Plate) 3 x Center Screw Cable Management Bracket Power Cable (10') CAT 5e Ethernet Cable (10') 5 x Cable Tie 3 x M4 Countersunk Screw 2 x 3/8" BSW x 3/4" Cap Head Screw 4 x 3/8" Head Fixing Bolt Vinten Spanner (for Head Fixing Bolt) 5mm Allen Key 5/16" Allen Key 5/64" Allen Key Flat Blade Screwdriver Limited 1-Year Warranty
The Vinten FHR-155 Robotic Head with Integrated StarTracker System is a fully functional robotic head. Suitable for studio or remote work, the head is nearly silent and supports up to 155 pounds. It has a cradle to adjust the center of gravity and balance of your camera on the head for best results. It also features a built-in floor movement tracking system, the StarTracker system, which provides information on the head's position in relation to the floor. The head is capable of accurate and highly repeatable motion control movement of your camera as well as compatible Canon and Fujinon servo-controlled lenses. The head can tilt a total of 100° (50° down and 50° up), and can pan 359°. The built-in 3-port Ethernet switch simplifies integration with robotic pedestals and IP prompting equipment. Mounting the head on a tripod or pedestal requires an optional mounting adapter. Highlights: The optical StarTracker system provides information on the position of the head as it travels along the studio or location floor. Designed for use with larger camera, lens, and prompter packages. Combines sophisticated software and mechanical engineering to deliver accurate and smooth movement. Designed to be near silent when moving, the head is well suited for use in environments with critical noise limits.
Payload 155 lb / 70.31 kg Pan & Tilt Range Pan: 359° Tilt: ±50° Drag Control Continuous Drag Adjustment, Servo Controlled Angular Speed: Velocity: 0.05 to 60°/s; Acceleration Typical: 60°/s2; Acceleration Peak: 120°/s2 Lens Control Canon Lenses: Full-Servo; Fujinon Lenses: Full-Servo Genlock Black Burst / Tri-Level Connectors Power: powerCON; Ethernet: 3 x RJ45; Genlock: 1 x Micro BNC; Aux Port: 26-pin; LANC Port Shot Recall Repeatability ±60 Arcseconds (±0.016°) System Resolution / Accuracy 22-bit, >0.01˚ Rated Load Inertia 16.53 lb ft2 / 7.5 m2 kg Motor Noise 41dBA at Max Speed Network IP Ethernet Power Input: 100 to 240 VAC, 50/60 Hz; Consumption: 175 W Fuse Protection 250 VAC, 3.15 A Temperature Range 41 to 104°F / 5 to 40°C Dimensions 19.29 x 17.17 x 9.25" / 490 x 436 x 235 mm Weight 49.6 lb / 22.5 kg
