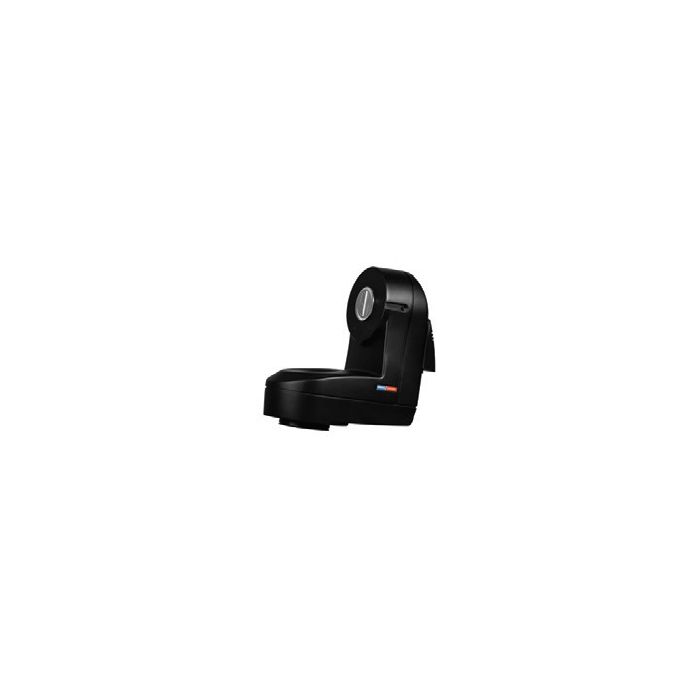

Vinten FHR-145 Head

by Vinten

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

V4102-0001

The Fusion FHR-145 Robotic Head from Vinten incorporates Intelligent Control Engineering (ICE) to help the head deliver unprecedented control and accuracy in a compact form. It has no external PSU or lens drives and is simple to set up, operate, and use.

53.390,50 KM 45.632,91 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Vinten Fusion FHR-145 Robotic Head
Limited 1-Year Warranty

Detalji

Designed to support typical camera and lens packages up to 145 lb, the FHR-145 provides broadcasters with a flexible yet simple solution.

Highlights:
Smooth camera motion control makes use of high-resolution absolute encoders and delivers accuracy of ±0.03°
Tilt lock for added security
Reconfigurable mounting cradle to suit a wide variety of camera, lens, and accessory payloads

Više informacija

Pan Range 720° (no end stops)
Tilt Range 100° (±50°)
Payload 145 lb / 66 kg
Rated Load Inertia 7.5 kgm2
Speed 0.01 to 60°/sec
Maximum Acceleration 60°/sec
Resolution 22-bit
Repeatability <0.03°, 2 minutes of arc
Durability Indoor: 100,000 cycles (27 moves/day for 10 years)
Encoder Pan: >2 mil counts / rev
Tilt: >2 mil counts / rev
Operating Temperature Indoor: 41 to 122°F / 5 to 50°C
Operating Humidity 90% non-condensing
Storage Temperature -40 to 140°F / -40 to 60°C
Connector Neutrik True 1 power input fused
Unfused power output using Neutrik True 1 outlet
Lens D-type for digital, zoom and focus
Voltage 100 to 240 VAC, 50/60 Hz auto-ranging
Power Consumption 175 W
Indicators For power, communications, and VR data
Power Switch On/off switch (brightness can be adjusted)
Interfaces Profile Control: Fusion VRC, FCS16, and LCS
Own interface to setup and diagnose faults
NLD All Fujinon and Canon full-servo lenses
Mounting Quickfix, 4-bolt Mitchel
Diagnostics Limits, feedback on shot status, GPIO, position, save data for transferring to another head, error reporting
Dimensions 19.7 x 17.3 x 9.6" / 50.0 x 44.0 x 24.5 cm. including cradle
Weight 51.6 lb / 23.4 kg
Cradle: 6.4 lb / 2.9 kg
