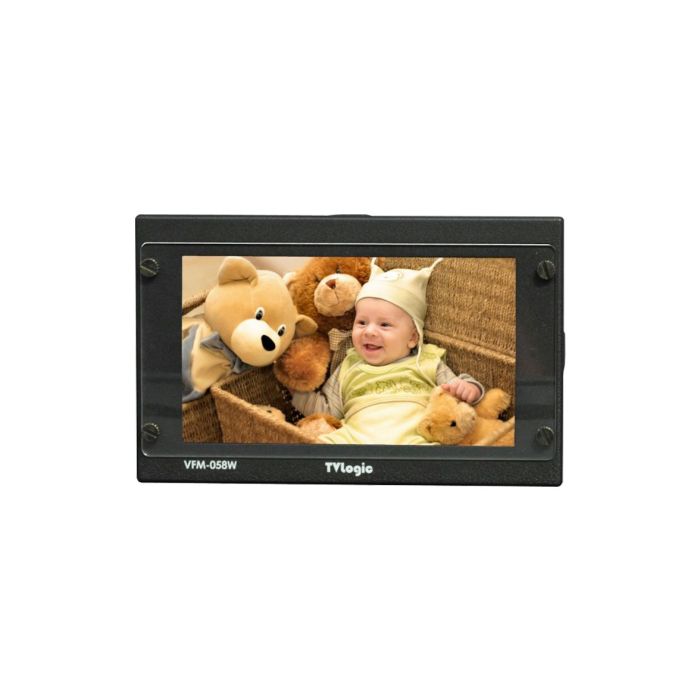

TVLogic VFM-058W 5.5'' Viewfinder monitor

by TVLogic

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

TVL-VFM-058W

5.5” LCD monitor which can function as a viewfinder
1920x1080 (16:9) resolution
External acrylic filter
Magnesium housing + lightweight

2.951,50 KM 2.522,65 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

TVLogic VFM-058W 5.5'' Viewfinder monitor

Detalji

The innovative and ergonomic design of the TVLogic VFM-058W Full HD Viewfinder / Monitor delivers comfort while its light, solid magnesium case achieves efficient ventilation. The VFM-058W supports multi-formats including 3G/HD/SD-SDI and HDMI which offers a wide application range from DSLR cameras to professional camcorders for broadcasting and movie shooting.

The VFM-058W includes features such as Max Brightness function, Temperature Adaptive Color, HDMI-to-SDI conversion output, 1:1 pixel mode, Luma(Y’) Zone Check function, DSLR Scale, Waveform, Camera Lut., Arri Camera Metadata, Vectorscope, Range Error, Focus Assist, Markers, Audio Level Meter with speaker, and time code display.

Features:

5.5” LCD monitor which can function as a viewfinder
1920x1080 (16:9) resolution
External acrylic filter
Magnesium housing + lightweight
LED Backlight
Contrast ratio 1000:1
Max brightness on / off
Supports TVLogic Color Calibration Utility for proper color alignment
Temperature Adaptive Color
Focus Assist
Marker
Blue Only/Mono
H/V Delay
Various Scan modes
HDMI & SDI embedded Audio
True Color - True 8bit & 70% of NTSC
Zoom
Tally signal In/Out (Mini XLR)
Low Power Consumption
HDMI-to-SDI conversion output
Waveform/Vectorscope (Y/ Cb/Cr, Line Waveform)
Range Error
3G Level A/B
Luma(Y') Zone Check
Embedded Audio Level Meter 16chv
Timecode Display

Više informacija

Display Spec.

Size	5.5"
Resolution	1920 X 1080 (16 : 9)
Pixel Pitch	0.063mm
Color Depth	16.7M
Viewing Angle	160°(H) / 160°(V)
Luminance	450cd/m2
Contrast Ratio	1000:1
Display Area	121(H) × 68(V) mm
Input
1 X BNC	3G-SDI A Channel Input
1 X HDMI	HDMI Input
Output
1 X BNC	3G-SDI Output
1 X HDMI	HDMI Output
Input Signal
3G SDI	2.970Gb/s
HD SDI	1.485Gbps
SD SDI	270Mbps
HDMI	1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) & VESA/IBM Modes
SDI Input Signal Formats
SMPTE 425M-A/B	1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF) / 1080i(60/59.94/50)
SMPTE 296	720p (60/59.94/50)
SMPTE 274	1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 260	1035i (60/59.94)
SMPTE 125	480i (59.94)
ITU-R BT.656	576i (50)
Audio
Audio In	Embedded Audio/Analog Stereo (Phone Jack)
Audio Out	Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions
, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Temperature Adaptive Color, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata
Closed Caption

Calibration

Other Functions
USB	Firmware update by USB memory stick
Ethernet
Options
Battery Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter, Sun Hood, V-Mount
Dimensions

Main body Dimensions
- Main Body : 156 x 98 x 33.4 (mm) / 6.14 x 3.85 x 1.31 (inch)
- Weight : 0.34kg / 0.74lbs
- Weight
(heatsink) : 0.12kg / 0.26lbs
