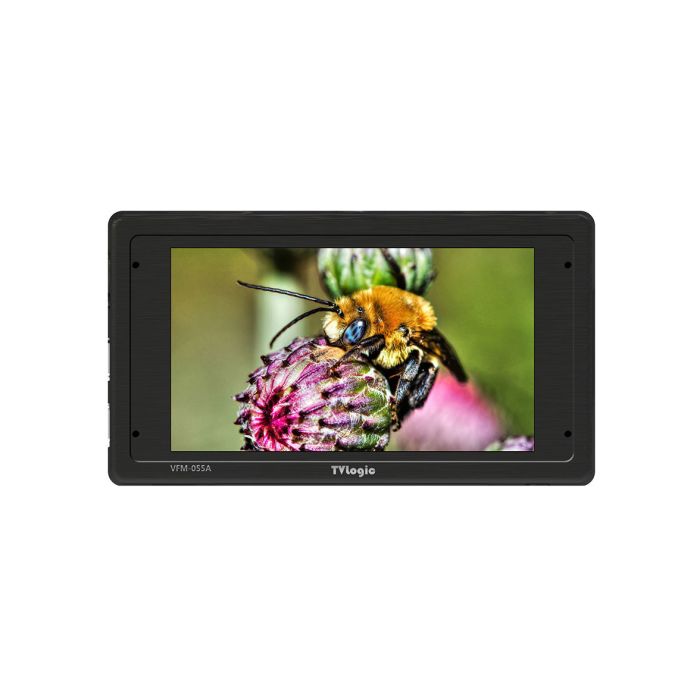

TVLogic VFM-055A 5.5'' 1920x1080 OLED Viewfinder monitor with cast-aluminum body

The VFM-055A is a 5.5-inch OLED (organic LED) on-camera viewfinder monitor with native 1920x1080 resolution.

It offers truly cinematic image quality with deep blacks, wide-gamut colour reproduction, a very wide viewing angle, and support for multiple video formats via 3G-SDI and HDMI 1.4 inputs. Useful functions include cinema camera log-to-linear LUT conversion, HDMI-SDI cross-converted output, waveform and vector scope, markers, focus assist, audio level meters and more.

Deepest Black

Due to its nature characteristics, LCDs have colour desaturation in the low colour levels. In other words, dark colours may appear to be relatively dull than the actual scene. VFM-055A bring back the lost colours in the dark scenes with accurate colour reproduction and high contrast.

Camera Look-Up Tables (LUT)

The VFM-055A supports various Camera LUTs from the major camera manufacturers, such as Sony, Canon, Arri, and RED. You can easily preview images with the diverse LUTs applied, including S-Log1, S-Log 2, S-Log3, Log-C, C-Log, RED Gamma3 and RED Gamma4.

Markers

• Types : OFF, 16:9, 4:3, 4:3 On-Air, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3
• Safety Area : 80%, 85%, 88%, 90%, 93%, 100%, EBU Action 16:9/14:9/4:3, EBU Graphic 16:9/14:9/4:3
• Marker Mat : darkness level outside the marker, OFF(transparent) ~ 7(Black)
• Custom : Colour, thickness, position
