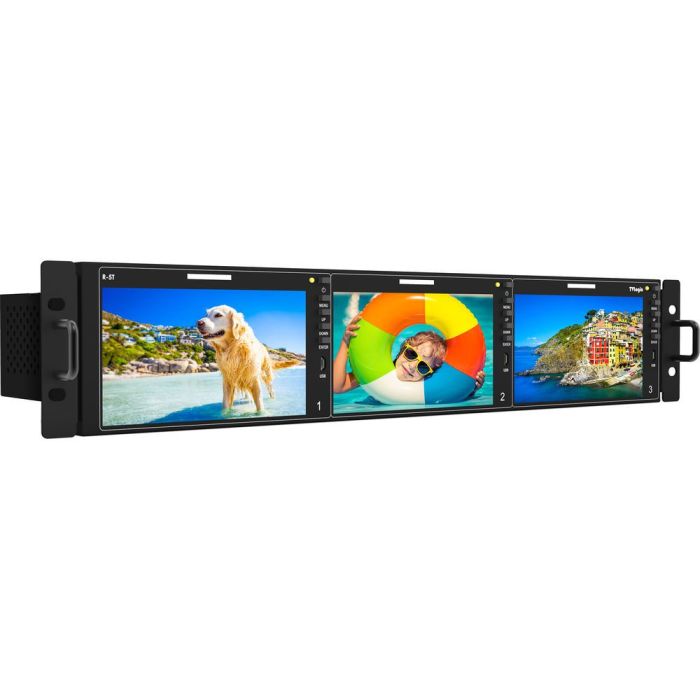

TVLogic R-5T 3 x 5.5'' LCD
by TVLogic- 3x5.5" LCD FHD Screen
- 1920x1080 Resolution (16:9)
- 12G / 6G / 3G-SDI Input, Output
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- 3x Video Monitors
- 1x Rack Mountable Kit
- 1x DC Power Adapter
1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
H/V Delay
Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
Key Lock
Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Luma(Y') Zone Check
Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Time Code Display
Displays the Timecode information on the screen.
User Aspect
Adjusts the Width /Height display ratio.
Various Scan Modes
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
| SPECIFICATIONS | |
| Display Spec. | |
| Size | 5.5" |
| Resolution | 1920 X 1080 (16:9) |
| Pixel Pitch | 0.0213(W) x 0.0639(H) |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 122.7(H) × 69.0(V) mm |
| Input | |
| 2 X BNC | SDI Input(12G-SDI x 1 / 3G-SDI x 1) |
| 1 X HDMI | HDMI Input |
| Output | |
| 2 X BNC | 1 x 12G-SDI / 1 x 3G-/SDI OUTPUT |
| Input Signal | |
| 3G SDI | 2.970Gbps |
| 12G SDI | 11.880Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mb/s |
| HDMI | 1080p(24/25/30/50/60) / 1080i(50/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50) |
| SDI Input Signal Formats | |
| SMPTE 2082 | 3840x2160(60/50/59.94p) |
| SMPTE 2081 | 3840x2160 (30/25/24p/23.98p/29.97p) |
| SMPTE 425M-A/B | 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
| Audio | |
| Audio Out | - |
| FPGA Functions | |
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom | |
| Calibration | |
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import | |
| Other Functions | |
| REMOTE | GPI (RJ45) |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
