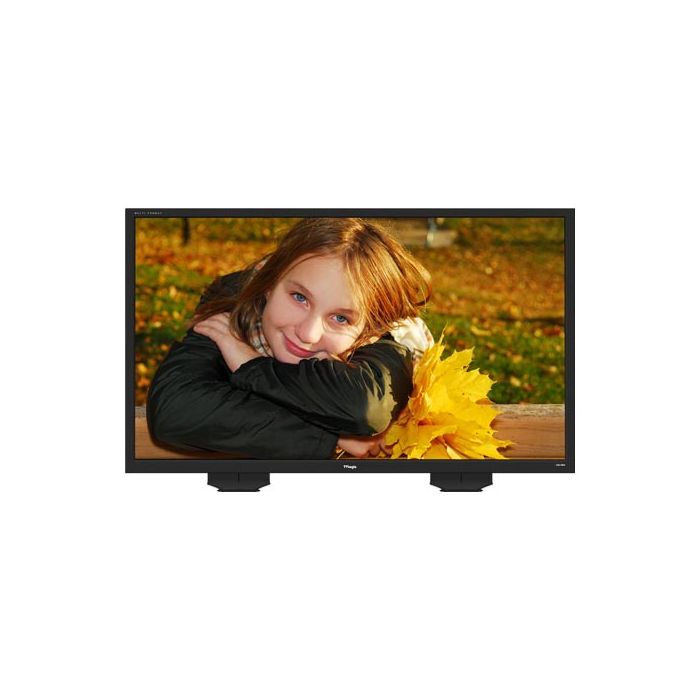

TVLogic LVM-550A 55'' 3G LCD Monitor

by TVLogic

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

TVL-LVM-550A

1920×1080 Native HD resolution
Matte Finish Panel
1:1 Pixel Mapping Modes for SD/HD

14.989,50 KM 12.811,54 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detalji

The LVM-550A is designed specifically for ultra high-end applications requiring the performance of the TVLogic LVM Series on a truly large scale display. The 54.6’’ LVM-550A delivers an unrivalled combination of quality, performance and features.

The LVM-550A features a 1080 native panel coupled with 3G/4:4:4 dual channel support and TVLogic’s powerful scaling engine to give you the best picture quality for both HD and SD material. Additional features include automatic colour alignment and HDCP decryption. It is an ideal solution for broadcast, post production and QC applications.

1920×1080 Native HD resolution
Matte Finish Panel
1:1 Pixel Mapping Modes for SD/HD
Supports TVLogic Colour Calibration Utility for proper colour alignment
Firmware update by using Ethernet or USB
GPI (RJ45)
Waveform/Vectorscope (Y/ Cb/Cr, RGB, Wide Type, Line Waveform)
Range Error
Marker
User Aspect
Blue Only/Mono
Key lock
Selectable 3 function keys
H/V Delay
Timecode Display
UMD support (ANC, Manual, Dynamic & User)
Closed Caption : CEA- 608/708, OP-42, OP-47, Line 21,ANC
Monitor control by using RS422/ Ethernet
IR Remote

Više informacija

Input	1 x DVI-I	DVI IN / VGA IN
	3 x BNC	Analogue Input
	2 x BNC	SDI A/B Channel Input
	1 x HDMI	HDMI Input

Output	3 x BNC	Analogue Loop through Output
	2 x BNC	SDI A/B Channel (Loop through out)

Input Signal	Analogue	Composite / S-Video / Component /RGB
	3G-SDI	2.970Gb/s
	HD-SDI	1.485Gbps
	SD-SDI	270Mbps
	DVI-Analogue	640×480 / 800×600 / 1024×768 / 1280×1024/ 720×400
	DVI-Digital (Graphic)	640×480 / 800×600 / 1024×768 / 1280×768/ 1280×1024 / 720×400
	DVI-Digital (Video)	1080p (24 / 25 / 30 / 50 / 60) / 1080i (50 /60 ) / 720p (50 / 60) /
		480i (60) / 480p (60) / 576i (50) / 576p (50)
	HDMI	480i / 480p / 720p / 1080i / 1080p / VESA / IBM

Analogue Input Spec	Composite	1.0Vpp (With Sync)
	S-Video	1.0Vpp (Y With Sync), 0.286 Vpp (C)
	Component	1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
	RGB	1.0Vpp (G With Sync), 0.7 Vpp (B, R)

SDI Input Signal Formats	SMPTE-425M-A/B	1080i (60 / 59.94 / 50)	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 / 30sF /
			29.97sF /25sF / 24sF / 23.98sF)
		1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
	SMPTE-372M (Dual Link)	Dual HD-SDI YPbPr(4:2:2)	1080p (60 / 59.94 / 50)
		Dual HD-SDI YPbPr / RGB(4:4:4)	1080i (60 / 59.94 / 50)
			1080p / psf (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-274M	1080i (60 / 59.94 / 50)
	SMPTE-296M	720p (60 / 59.94 / 50)
	SMPTE-260M	1035i (60 / 59.94)
	SMPTE-125M	480i (59.94)
	ITU-R BT.656	576i (50)
	2k Format	2048 x 1080(23.98p/psf / 24p/psf)

Audio IN		Embedded Audio / Analogue stereo (Phone Jack)
Audio OUT		Analogue stereo (Phone Jack) / Internal Speaker (Stereo)

LCD	Size	55″
	Resolution	1920 x 1080 (16:9)
	Pixel Pitch	0.634mm
	Colour	16.7M (True 8bit)
	Viewing Angle (Typical )	H : 178 degrees
		V : 178 degrees
	Luminance of White	450cd/m (centre)
	Contrast	4000:01:00
	Display Area	1218(H) x 685(V) mm

Power		AC 100~240V (50-60Hz)
Power Consumption (Approx.)		516 Watts Max.
Operating Temperature		0 °C to 35 °C (32 °F to 95 °F )
Storage Temperature		-20 °C to 60 °C (-4 °F to 140 °F )
Accessories		AC Power Cord / Remote Control
Option		Carrying Case / Wall Mount
