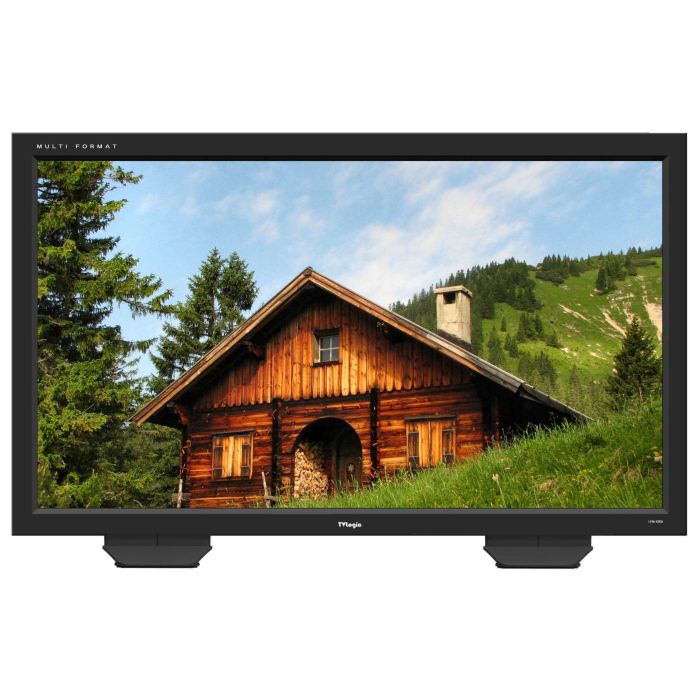

TVLogic LVM-420A 42'' 3G LCD Monitor

by TVLogic

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

TVL-LVM-420A

• Matte Finish Panel
• 1:1 Pixel Mapping Modes for SD/HD
• Blue Only
• H/V Delay

14.170,00 KM 12.111,11 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detalji

TV Logic LVM-420A (LVM-420A, LVM420A, LVM/420A, lvm-420a) 42" 1920 x 1080 Native HD LCD Display

The LVM-420A features a 1920 x 1080 native panel coupled with 3G/Dual-Link support and TVLogic’s powerful scaling engine to give you the best picture quality for both HD and SD Video sources. Additional features include automatic color alignment and HDCP decryption. It is an ideal solution for broadcast, post production and QC applications.

- Main Body : 985 x 577.9 x 96.4 (mm) / 38.7 x 22.7 x 3.7 (inch)

- With stand : 985 x 24.8 x 255 (mm) / 38.7 x 25.3 x 10 (inch)

- Weight : 30kg / 66.13lbs

Compatible with varied SDI signals - 480i, 576i, 1080i, 1080p, 1080psf.
Compatible with varied analog signals – Composite, S-Video, Component, RGB and etc.
All-in-one type system - Slim all-in-one type monitor optimized for space utilization that requires no other accessories.
Wide Screen Support - This product supports native 16:9 aspect ratio.
Remote control function - This can be remote controlled simply with a cable connection without any additional peripheral equipment attached to the unit.
Ethernet & USB support - Supports ethernet and USB connection for program download and monitor control.
DVI/HDMI(HDCP) input support - DVI(Analog), DVI(Digital) and HDMI(HDCP) input is available without any other accessory.
Dual link support - Supports Dual link YCbCr/RGB 4:4:4 and YCbCr 4:2:2 formats.

3G support - Supports 3G A/B formats.

42” 1920 x 1080 Native HD Resolution
• Matte Finish Panel
• 1:1 Pixel Mapping Modes for SD/HD
• Blue Only
• H/V Delay
• Key lock
• Marker
• Mono
• Range Error
• F/W update via USB or Network • Time Code Display
• UMD
• User Aspect
• Waveform/Vectorscope
• CC-608 LINE 21/ANC, CC-708, CC-KOR
• Selectable 3 function keys
• TVLogic Colour Calibration Utility
• IR remtoe
• GPI (RJ45)

Više informacija

Input	1 x DVI-I	DVI IN / VGA IN
	3 x BNC	Analogue Input
	2 x BNC	SDI A/B Channel Input
	1 x HDMI	HDMI Input

Output	3 x BNC	Analogue Loop through Output
	2 x BNC	SDI A/B Channel (Loop through out)

Input Signal	Analogue	Composite / S-Video / Component /RGB
	3G-SDI	2.970Gb/s
	HD-SDI	1.485Gbps
	SD-SDI	270Mbps
	DVI-Analogue	640×480 / 800×600 / 1024×768 / 1280×1024/ 720×400
	DVI-Digital (Graphic)	640×480 / 800×600 / 1024×768 / 1280×768/ 1280×1024 / 720×400
	DVI-Digital (Video)	1080p (24 / 25 / 30 / 50 / 60) / 1080i (50 /60 ) / 720p (50 / 60) /
		480i (60) / 480p (60) / 576i (50) / 576p (50)
	HDMI	480i / 480p / 720p / 1080i / 1080p / VESA / IBM

Analogue Input Spec	Composite	1.0Vpp (With Sync)
	S-Video	1.0Vpp (Y With Sync), 0.286 Vpp (C)
	Component	1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
	RGB	1.0Vpp (G With Sync), 0.7 Vpp (B, R)

SDI Input Signal Formats	SMPTE-425M-A/B	1080i (60 / 59.94 / 50)	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 / 30sF /
			29.97sF /25sF / 24sF / 23.98sF)
		1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
	SMPTE-372M (Dual Link)	Dual HD-SDI YPbPr(4:2:2)	1080p (60 / 59.94 / 50)
		Dual HD-SDI YPbPr / RGB(4:4:4)	1080i (60 / 59.94 / 50)
			1080p / psf (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-274M	1080i (60 / 59.94 / 50)
	SMPTE-296M	720p (60 / 59.94 / 50)
	SMPTE-260M	1035i (60 / 59.94)
	SMPTE-125M	480i (59.94)
	ITU-R BT.656	576i (50)
	2k Format	2048 x 1080(23.98p/psf / 24p/psf)

Audio IN		Embedded Audio / Analogue stereo (Phone Jack)
Audio OUT		Analogue stereo (Phone Jack) / Internal Speaker (Stereo)

LCD	Size	42″
	Resolution	1920 x 1080 (16:9)
	Pixel Pitch	0.4845mm
	Colour	1.07 Bil. (True 10bit)
	Viewing Angle (Typical )	H : 178 degrees
		V : 178 degrees
	Luminance of White	500cd/m (centre)
	Contrast	4000:01:00
	Display Area	930.24(H) x 523.26(V) mm

Power		AC 100~240V (50-60Hz)
Power Consumption (Approx.)		290 Watts Max.
Operating Temperature		0 °C to 35 °C (32 °F to 95 °F )
Storage Temperature		-20 °C to 60 °C (-4 °F to 140 °F )
Accessories		AC Power Cord / Remote Control
Option		Carrying Case / Wall Mount
