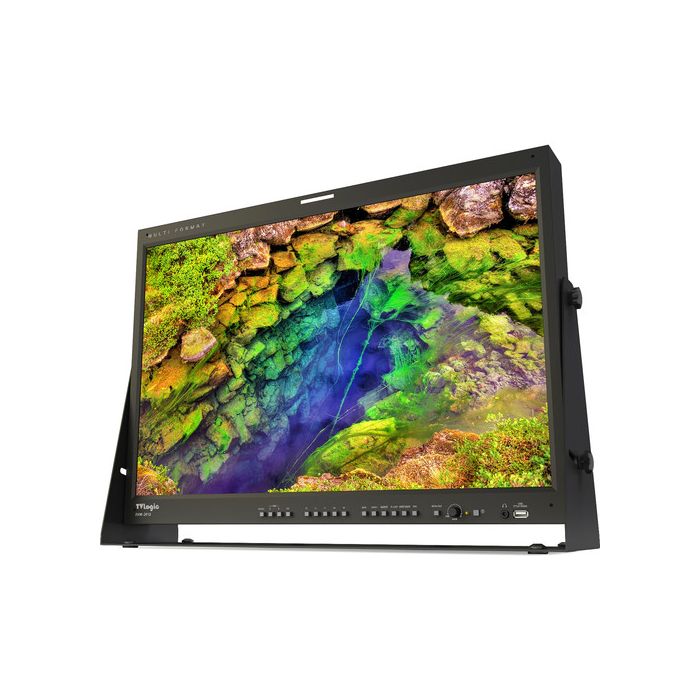

TVLogic LVM-241S 24'' FHD High-end LCD Monitor

The 24" High-End WUXGA LCD Monitor from TVLogic supports video at resolutions up to 1920 x 1200. It features a brightness of 400cd/m2, a contrast ratio of 1500:1, and supports 178° viewing angles. This monitor has Analog, 3G-SDI, HDMI, DVI, SDI, and audio ports for connectivity. It supports Ethernet control. A power cable and desktop stand are included with the monitor.

• The audio level meter displays the level of the embedded sound signal together with the video signal input through the terminal, such as SDI or HDMI
• Closed caption
• Blue only/mono function to adjust the color tones (tones and saturation) of the screen using the SMPTE color bar
• Focus assist assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus
• H/V delay allows you to check the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
• Key lock locks the knob or key control
• Marker displays various kinds of aspect ratios on the screen
• Range Error analyzes the input signal's luma and chroma information; if the input signal exceeds the designated minimum value and maximum value, the pixel blinks
• Timecode information is displayed on the screen
• User aspect adjusts the width/height display ratio
• Overscan function for extra area around the four edges of the image that may not be seen reliably by the viewer
• Underscan function constrains the size of the image so the monitor shows everything the camera is seeing
• 1:1 pixel function displays the original image resolution without scaling to match a certain resolution or an aspect ratio
• Waveform Y displays the luma YCbCr component of the input signal into waveform
• Vectorscope displays the color components 'B-Y' and 'R-Y' of the input signals onto the X-Y axis
• Camera LUT applies the LUTs to the outbound log signal
• 1:1 pixel mapping modes for SD/HD display the original image resolution without scaling to match a certain resolution or an aspect ratio
• Supports 3G-SDI Level A/B input
• UMD displays user-customized eight characters, source ID, or tally signal of ancillary (ANC) data on the screen
• PbP (Picture-by-Picture) supports displaying multiple inputs on the screen at the same time
• The HDR emulation function allows users to check how an HDR image will look on location
• Custom 3D LUT import allows you to load your 3D-LUT files to an NLE software like Davinci Resolve via USB flash memory and display your LUT on VFM-055A or F-7H
• Fast mode
