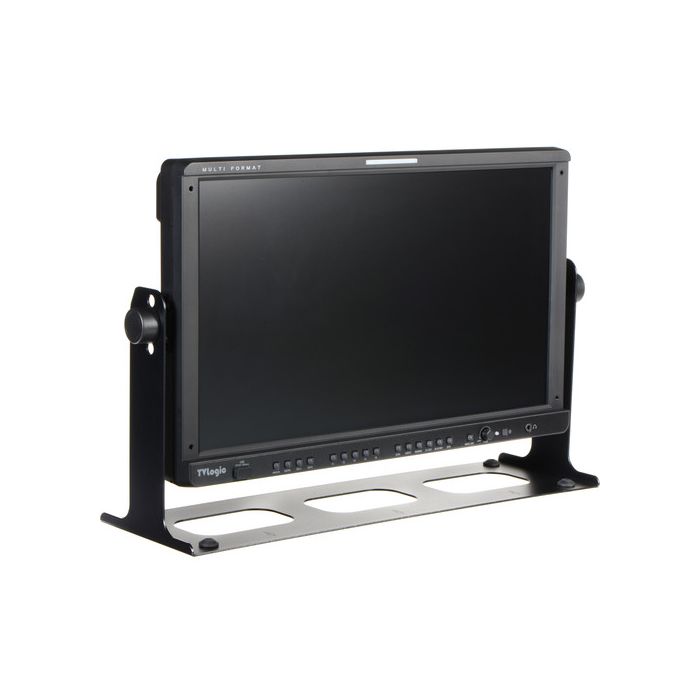

TVLogic LVM-170A 17'' FHD LCD Monitor

by TVLogic

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

TVL-LVM-170A

17" 1920 x 1080 (16:9) resolution
3G-SDI Level A/B
Audio level meter display
Blue only

4.224,00 KM 3.610,26 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

TVLogic LVM-170A 17" Full HD SD/HD/3G-SDI Multi-Format Monitor
AC Power Cord
Stand
USB Cover

Detalji

The LVM-170A 17" Full HD SD/HD/3G-SDI Multi-Format Monitor from TVLogic supports multi-format analog, 3G/HD/SD-SDI, DVI, and HDMI signal inputs. It features a true 16:9 aspect ratio LCD panel with 12-bit video processing performance allowing for accurate reproduction of interlaced video and scaling performance. It provides a wide viewing angle of 178°, contrast ratio of 700:1, and maximum luminance of 300 cd/m².

17" 1920 x 1080 (16:9) resolution
3G-SDI Level A/B
Audio level meter display
Blue only
Focus assist
H/V delay
Key lock
Luma(Y') zone check
Marker
Mono
Range error
Timecode display
UMD
User aspect
Various scan modes
Waveform/Vectorscope
CC-608 ANC, CC-608 LINE 21, and CC-708
TVLogic color calibration utility

Više informacija

TVLogic LVM-170A Specs
LCD Size	17.3" / 44 cm
Video System	Not Specified by the Manufacturer
Resolution	1920 x 1080
Aspect Ratio	16:09
Pixel Pitch	0.199 mm
Color Depth	16.7 million
Viewing Angle (H x V)	178° / 178°
Brightness	300 cd/m²
Contrast Ratio	700:01:00
Display Area	381 x 214 mm
Input and Output Connectors	Inputs:
	3 x BNC: CVBS / S-Video / Component / RGB(D-TV)
	2 x BNC: SDI A/B Channel Input
	1 x HDMI Input
	1 x DVI - I Input

	Output:
	3 x BNC: CVBS / S-Video / Component / RGB(D-TV)
	1 x BNC: 3G/HD/SD-SDI Output
Input Signal	Analog: CVBS / S-Video / Component / RGB(D-TV)
	3G-SDI: 2.970 Gb/s
	HD-SDI: 1.485 Gb/s
	SD-SDI: 270 Mb/s
	DVI-Analog: 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 1024 / 1366 x 768
	DVI-D (PC & HDMI): 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 768 / 1280 x 1024 / 1366 x 768 / 1080p (23.98/24/25/30/50/60)/ 1080i (50/59.94/60) / 720p (50/60) / 480i (60) / 480p (60) / 576i (50) / 576p (50)
	HDMI (PC & HDMI): 640 x 480 / 720 x 400 / 800 x 600 / 1024 x 768 / 1280 x 768 / 1280 x 1024 / 1366 x 768 / 1080p (23.98/24/25/30/50/60) / 1080i (50/59.94/60) / 720p (50/60) / 480i (60) / 480p(60) / 576i(50) / 576p (50)
Analog Input	CVBS: 1.0 V p-p (With Sync) NTSC. PAL
	S-Video: 1.0 V p-p (Y With Sync), 0.286/0.300 V p-p (Chroma)
	Component Video: 1.0 V p-p (Y With Sync), +350mV (Pb,Pr)
	RGB: 1.0 V p-p (G With Sync), 0.7 V p-p (B,R)
SDI Input Signal Formats	SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
	SMPTE-274M: 1080i (60/59.94/50) / 1080p (30/29.97/25/24/24sF/ 23.98/23.98sF)
	SMPTE-296M: 720p (60/59.94/50)
	SMPTE-260M: 1035i (60/59.94)
	SMPTE-125M: 480i (59.94)
	ITU-R BT.656: 576i (50)
	2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)
Audio In	Embedded audio / analog stereo (Phone Jack)
Audio Out	Analog stereo (Phone Jack)
	Internal speaker (Stereo)
Power Requirements	12 / 24 VDC
	100 to 240 VAC (50 to 60 Hz)
Power Consumption	Approximately 60 W
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Dimensions	16.6 x 10.4 x 2.9" / 42.2 x 26 x 7.4 cm without stand
	19 x 12.2 x 5.4" / 48.3 x 31 x 13.7 cm with stand
Weight	9.25 lb / 4.19 kg
Packaging Info
Package Weight	13.7 lb
Box Dimensions (LxWxH)	21.3 x 18 x 11.5"
