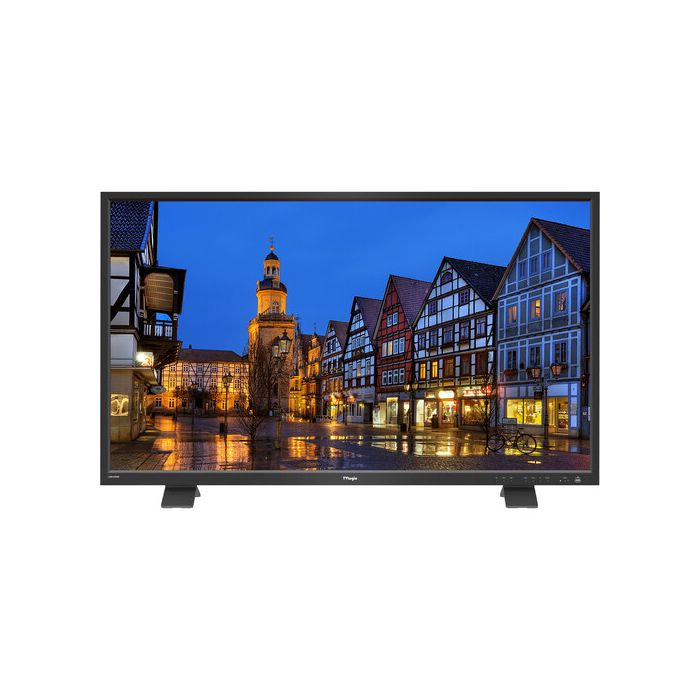

TVLogic LUM-550M3 55'' True UHD 4K LCD Monitor

TVLogic LUM-550M3 55'' True UHD 4K LCD Monitor

by TVLogic

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

TVL-LUM-550M3

54.6" UHD 4K LCD Monitor
4 x SDI Inputs, 1 x HDMI Output

17.063,50 KM 14.584,19 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor
AC Power Cable
Table Stand
IR Remote
Carrying Case

Detalji

Take 12G-SDI, 3G-SDI, and HDMI video sources up to UHD 4K and output them to the LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor from TVLogic with up to four SDI sources for monitoring in the field. The SDI ports on the monitor, four outputs and four inputs, can support either 12G-SDI or 3G-SDI video. The 12G-SDI ports can perform as single-link connections, while the 3G-SDI ports can perform in quad-link configurations. The monitor features camera LUTs and custom 3D LUT imports for color customization.

The LUM-550M3 has a horizontal viewing angle of 178° and a maximum white brightness of 700 cd/m² for increased visibility. Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can be achieved via the onboard buttons or using the IR remote control.

Features at a Glance

HDR monitoring with PQ, HLG, SLOG3, and EOTF gamma
Select color standards among HD, UHD, DCI-P3, PQ, Dolby PQ, HLG, and SLOG3
Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
Supports custom 3D LUT import
Waveform and vectorscope

Other Video Assist Functions

Audio level meter
Camera LUTs (ARRI, Sony, Canon, RED)
Markers
Timecode display
Closed caption

Više informacija

Display Size	54.6" / 138.7 cm
Native Resolution	3840 x 2160
Touchscreen	No
HDR Support	Yes
Video I/O	1x HDMI 2.0 Input
	2x BNC (12G-SDI) Input
	2x BNC (12G-SDI) Output
	2x BNC (3G-SDI) Input
	2x BNC (3G-SDI) Output
	Show Less
Media/Memory Card Slot	No
Video Format	SDI
	DCI 4K: 60/59.94/50
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
	HDMI (4:4:4 RGB, YCC)
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	Show Less
Battery	No
Power Consumption	150 W
Display
Panel Type	LCD
Display Size	54.6" / 138.7 cm
Native Resolution	3840 x 2160
Aspect Ratio	16:09:00
Viewing Angle	Horizontal: 178°
	Vertical: 178°
Touchscreen	No
Maximum Brightness	700 nits / cd/m2
Contrast Ratio	1100:01:00
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes
Image Controls	Vectorscope, Waveform
Inputs/Outputs
Video I/O	1x HDMI 2.0 Input
	2x BNC (12G-SDI) Input
	2x BNC (12G-SDI) Output
	2x BNC (3G-SDI) Input
	2x BNC (3G-SDI) Output
Embedded Audio	SDI
Audio I/O	1x 1/8" / 3.5 mm Output
Built-In Speaker	No
Media/Memory Card Slot	No
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	SDI
	DCI 4K: 60/59.94/50
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576i: 50
	480i: 59.94
	HDMI (4:4:4 RGB, YCC)
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
Gamma Curve	ARRI Log C, Canon Log, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Power
Input Power	100 to 240 VAC, 50 / 60 Hz
Battery	No
Power Consumption	150 W
General
Dimensions	49.7 x 29.4 x 3.2" / 126.2 x 74.6 x 8.14 cm
	5 x 3.13 x 1" / 126.2 x 79.45 x 24.5 mm
Weight	78.9 lb / 35.8 kg
Packaging Info
Package Weight	101 lb
Box Dimensions (LxWxH)	55 x 36 x 15"
