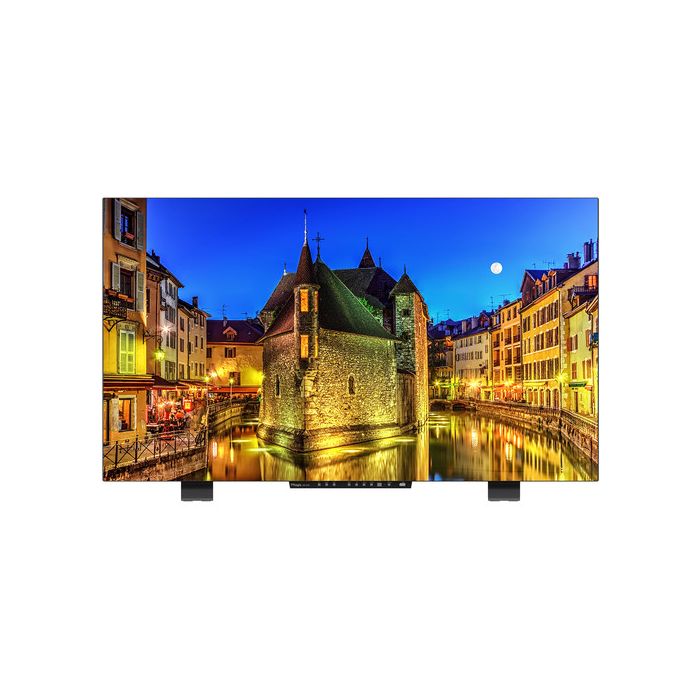

TVLogic LEM-550R 55'' 4K (3,840 x 2,160) OLED Monitor

The 55" UHD 4K OLED Monitor from TVLogic supports HDR standards such as SMPTE 2084PQ and HLG. It supports video at resolutions up to 3840 x 2160. The OLED monitor features a brightness of 750 cd/m2, a contrast ratio of 140,000:1, and 179° viewing angles. There are 12G/3G-SDI and HDMI ports for connectivity. Firmware can be updated via a USB memory stick (available separately). An AC power cord and stand are included.

• Supports HDR standards such as SMPTE 2084PQ and Hybrid-Log Gamma (HLG)
• Audio Level Meter displays the level of the embedded sound signal together with the video signal input through the SDI or HDMI terminals
• Blue Only / Mono channel (instead of red and green channels) adjusts the color tones (tones and saturation) of the screen using the SMPTE Color Bar
• H/V delay allows you to check the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
• Marker displays various kinds of aspect ratios on the screen
• Time Code Display displays the Timecode information on the screen
• Waveform Y displays the Luma (Y'), Cb, Cr component of the input signal into waveform
• Vector Scope displays the color components 'B-Y' and 'R-Y' of the input signals onto the X-Y axis
• 1:1 Pixel Mapping Modes for SD/HD displays the original image resolution without scaling to match a certain resolution or an aspect ratio
• 3G-SDI Level A/B supports 3G-SDI Level A/B input
• Wide color gamut for accurate color reproduction
