Tilta Panasonic EVA1 Quick release baseplate

by Tilta

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

T-BS-T86

For Panasonic AU-EVA1 Camera
VCT-14 Baseplate with Shoulder Pad
Front and Rear 15mm LWS Rod Clamps

979,50 KM 837,18 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Tilta 15mm LWS Quick Release Baseplate for AU-EVA1
VCT-14 Baseplate
Contoured Shoulder Pad
Quick Release Plate
2 x 3/8"-16 Screw
4 x Thumb-Levers
Lens Adapter Support
2 x 15mm LWS Rods (7.9")

Detalji

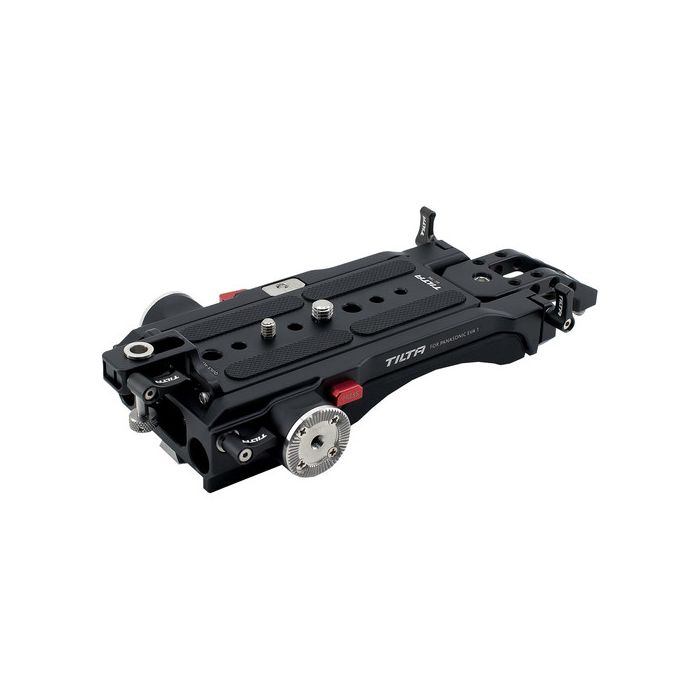

Designed to fit your Panasonic AU-EVA1 camera, the Tilta 15mm LWS Quick Release Baseplate for AU-EVA1 enables you to quickly switch between VCT-14 tripod-based shots and handheld capture. The baseplate features front and rear 15mm LWS rod brackets, an integrated shoulder pad for comfort, and ARRI standard rosettes for attaching separately available handgrips.

A dedicated support at the front of the baseplate enables you to use the baseplate with an optional lens-mount adapter. The Tilta 15mm LWS Quick Release Baseplate for AU-EVA1 includes a 7.9" pair of 15mm rods and a quick release plate with 3/8"-16 mounting screws.

Features

Enables you to quickly switch between VCT-14 tripod-based shots and handheld capture
Front and rear 15mm LWS rod brackets for mounting accessories
Integrated shoulder pad for comfortable handheld operating
ARRI standard rosettes for attaching optional handgrips
Front support enables you to use the baseplate with an optional lens-mount adapter
Quick release plate with 3/8"-16 mounting screws

Više informacija

Tilta BS-T86 Specs

Support Type	Shoulder Support
Grip Type	Grip Required (Not Included)
Camera Compatibility	Panasonic AU-EVA1

Mounting

Rod Standard	15 mm LWS / 60 mm Spacing
Included Rods	2 x 7.9" / 20 cm 15 mm Rod
Accessory Mounting	Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread
Camera Mounting	1/4"-20 Screw, 3/8"-16 Screw
Tripod Mounting	1/4"-20 Thread, 3/8"-16 Thread, VCT-14
Rod Ports	2 x 15 mm Rod Port
Rosettes	Sides: 2 x Rosette w/ 3/8”-16 Thread

General

Materials	Aluminum, Steel
Weight	Not Specified by Manufacturer

Packaging Info

Package Weight	2.58 lb
Box Dimensions (LxWxH)	12.9 x 6.2 x 3.4"
