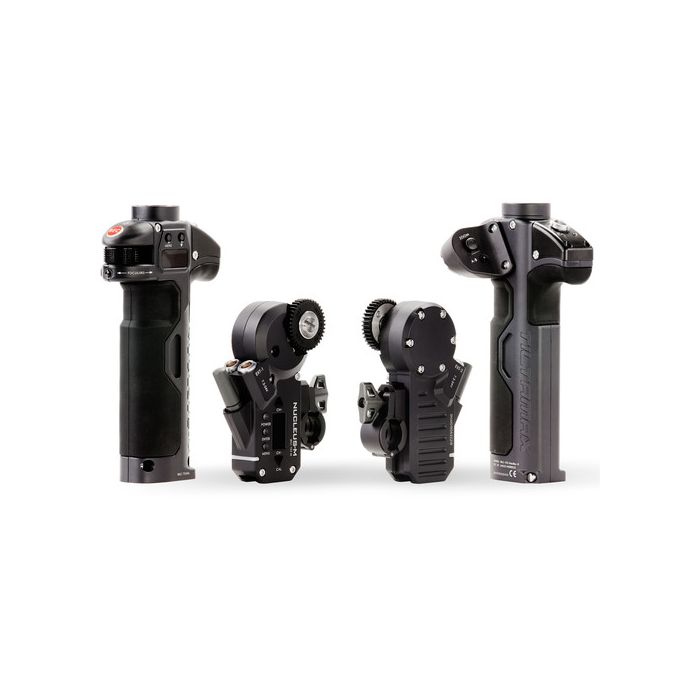

Tilta Nucleus-M Wireless Lens Control System Partial Kit V
by Tilta- Nucleus-M Right Handgrip
- Nucleus-M Left Handgrip
- ARRI-Standard Rosette Adapters
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Tilta Nucleus-M Handgrip (Left)
- Tilta Nucleus-M Handgrip (Right)
- 2 x Tilta Nucleus-M FIZ Lens Control Motor
- 19mm Rod Adapter
- 19mm to 15mm Bushing
- 2 x Tilta DSLR Lens Follow Focus Adapter
- Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable
- Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable (21.65")
- 2 x Tilta ARRI-Standard Rosette Adapters for Nucleus-M Handgrip (L&R)
- 2 x Mounting Screw
- 2 x Tightening Toggle
- Tilta Nucleus-M Battery Charger
- AC Power Cable
The Tilta Nucleus-M Wireless Lens Control System Partial Kit V enables a camera operator to hand-hold their camera and pull focus and iris wirelessly. The kit includes left and right handgrip controllers, ARRI rosette adapters, two Nucleus-M motors, two removable lens belts (DSLR Lens Follow Focus Adapters), two motor power cables, and a battery charger. If you are using a lens that does not have standard cine-style gears, then use the included lens belts to add gears to your lens.
This partial kit is a dual-axis system, typically controlling focus and iris, but the hand control units will allow you to control an additional motor (not included) for zoom control when using a zoom lens. The system can wirelessly pull focus from up to 1000' away, and available 18650 batteries (not included) can power each hand unit for approximately 10 hours on a single charge. The first motor is powered via the included D-Tap to 7-pin cable, the second motor daisy-chains to the fist via the 7-pin to 7-pin cable for power.
Tilta Nucleus-M Handgrip (Left)
The Tilta left-side Wireless Handgrip provides fingertip lens control while also functioning as a handgrip support for your camera rig. This component of the separately available Nucleus-M FIZ (focus/iris/zoom) system enables you to split control between the handgrip and the hand unit as you prefer.
With a wireless control range of up to 1000', the Wireless Handgrip can be used for drone or car-mounted shots in addition to handheld configurations. Mount the handgrip using its ARRI-style rosette or use an optional adapter to mount to your gimbal. Use this grip with a separately available right-side grip for full focus, iris, and zoom control of cine-style lenses.
Handgrip features include three knob-rotation settings, optional adapters for either bar- or ring-based gimbals, LED indicators, and an LCD display. An optional thumb joystick is available separately for the left handgrip. Powered by two 18650 lithium-ion batteries (not included), the handgrips can maintain a single charge for up to two days. As part of the Nucleus-M system, the Wireless Handgrip provides a run/stop function for select cameras.
Features
- Customizable focus, iris, and zoom control
- Run/stop control for select cameras
- ARRI-style rosette mounting and optional gimbal adapter mounts
- 1000' wireless control range
- 85, 180, and 310° knob rotation settings
- LCD display and LED indicators
Tilta Nucleus-M Handgrip (Left) Specs
|
Current |
0.1 A |
|
Voltage |
Battery: 7.2 V |
|
Port |
Power/Communication: 4-pin |
|
Rotation |
85, 180, 310° |
|
Battery Type |
18650 |
|
Operating Frequency |
2.4 GHz |
|
Emission Power |
10-100 MW |
|
Maximum Transmission Distance |
33-328' / 10-100 m |
|
Operating Temperature Range |
-4 to 122°F / -20 to 50°C |
|
Material of Construction |
Aluminum alloy, stainless steel |
|
Dimensions |
With Thumb Unit: 6.9 x 3.3 x 2.3" / 17.6 x 8.5 x 6. cm |
|
Weight |
With Thumb Unit: 12.5 oz / 355 g |
Packaging Info
|
Package Weight |
0.59 lb |
|
Box Dimensions (LxWxH) |
8.8 x 4.05 x 2" |
Tilta Nucleus-M Handgrip (Right) Specs
|
Current |
0.1 A |
|
Voltage |
Battery: 7.2 V |
|
Port |
Power/Communication: 4-pin |
|
Rotation |
85, 180, 310° |
|
Battery Type |
18650 |
|
Operating Frequency |
2.4 GHz |
|
Emission Power |
10-100 MW |
|
Maximum Transmission Distance |
33-328' / 10-100 m |
|
Operating Temperature Range |
-4 to 122°F / -20 to 50°C |
|
Material of Construction |
Aluminum alloy, stainless steel |
|
Dimensions |
With Thumb Unit: 6.9 x 3.3 x 2.3" / 17.6 x 8.5 x 6. cm |
|
Weight |
With Thumb Unit: 12.5 oz / 355 g |
Packaging Info
|
Package Weight |
0.65 lb |
|
Box Dimensions (LxWxH) |
9.5 x 4.15 x 2.7" |
Tilta Nucleus-M FIZ Lens Control Motor Specs
|
Gear Mod |
0.8 |
|
Gear Pitch |
32 |
|
Number of Gear Teeth |
35 |
|
Face Width |
0.4" / 10 mm |
|
Operating Frequency |
2.4 GHz |
|
Maximum Range |
1640' / 500 m (unobstructed) |
|
Emission Power |
30-100 MW |
|
Current |
Quiescent: 0.10 A, 14.8 V |
|
Voltage |
7.2-24 V |
|
Rod Compatibility |
19, 15 mm |
|
Noise |
15 dB |
|
Operating Temperature Range |
-4 to 122°F / -20 to 50°C |
|
Material of Construction |
Aluminum alloy, stainless steel, ABS plastic |
|
Dimensions |
4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm |
|
Weight |
6.7 oz / 190 g (motor only) |
Packaging Info
|
Package Weight |
0.495 lb |
|
Box Dimensions (LxWxH) |
6.45 x 4.65 x 1.4" |
Tilta DSLR Lens Follow Focus Adapter Specs
|
Material of Construction |
Silicone and plastic |
|
Compatibility |
Tilta Nucleus-M, Nucleus-Nano |
|
Dimensions |
Not supplied by manufacturer |
|
Weight |
Not supplied by manufacturer |
Packaging Info
|
Package Weight |
0.05 lb |
|
Box Dimensions (LxWxH) |
3.9 x 3.75 x 0.5" |
Tilta Nucleus-M D-Tap To 7-Pin Motor Power Cable Specs
|
Connectors |
D-Tap, 7-pin LEMO-type |
|
Length |
23" / 58.4 cm |
|
Weight |
1.1 oz / 32 g |
Packaging Info
|
Package Weight |
0.13 lb |
|
Box Dimensions (LxWxH) |
6.25 x 5.75 x 1.15" |
Tilta Nucleus-M 7-Pin Motor-To-Motor Connection Cable (21.65") Specs
|
Material of Construction |
Aluminum Alloy, Copper, Rubber |
|
Connectors |
7-Pin |
|
Length |
21.65" / 55.0 cm |
Packaging Info
|
Package Weight |
0.095 lb |
|
Box Dimensions (LxWxH) |
4.85 x 2.8 x 0.6" |
Tilta ARRI-Standard Rosette Adapters For Nucleus-M Handgrip (L&R) Specs
|
Material of Construction |
Aluminum alloy, stainless steel |
|
Dimensions |
2.3 x 2 x 1.5" / 5.7 x 5.1 x 3.8 cm |
|
Weight |
2.5 oz / 72 g |
Packaging Info
|
Package Weight |
0.35 lb |
|
Box Dimensions (LxWxH) |
4.5 x 2.9 x 1.7" |
Tilta Nucleus-M Battery Charger Specs
|
Power Input |
100-240 VAC, 50/60 Hz, 0.15 A |
|
Power Output |
4.2 VDC, 650 mAh |
|
Material of Construction |
Plastic |
Packaging Info
|
Package Weight |
0.6 lb |
|
Box Dimensions (LxWxH) |
7.5 x 5.8 x 1.7" |
