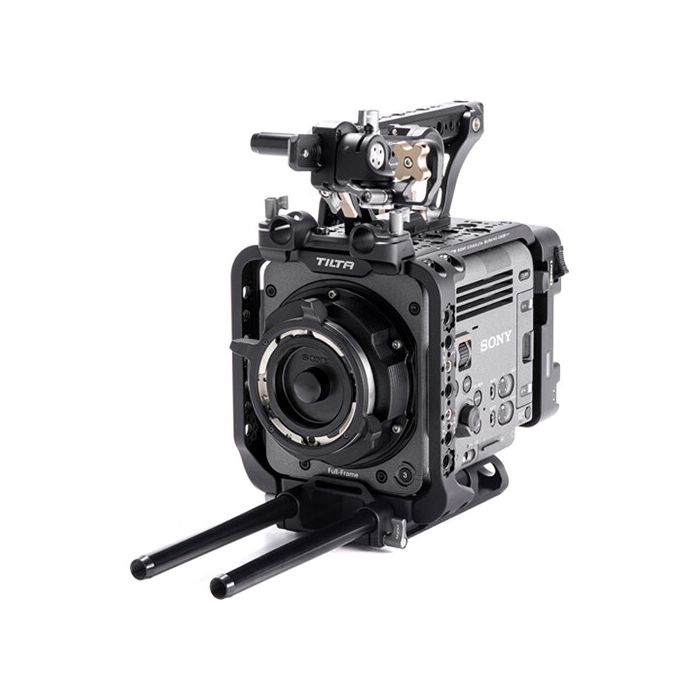

Tilta Camera Cage for Sony BURANO Advanced Kit - Gold Mount

by Tilta
Raspoloživost Sarajevo: Isporuka 20-30 dana
SKU
T-ESR-T18-C-AB

The Camera Cage Advanced Kit from Tilta expands on the configuration of the basic camera cage for the Sony BURANO to take your camera to the next level with numerous accessories and mounts.

2.712,50 KM 2.318,38 KM

Sadržaj pakovanja

  • Tilta Battery Plate for Sony BURANO (Gold Mount)
  • Tilta Full Camera Cage Plus for Sony BURANO
  • Top Plate
  • Left Side Arm
  • Right Side Arm
  • 15mm LWS Baseplate
  • 15mm LWS Rod Holder
  • Side Mounting Plate
  • Top Handle
  • 2 x Tilta Threaded 15mm Rod (Black, 8", Single)
  • Mini Multi-Tool
  • Allen Wrench
  • Tilta Rotating EVF Bracket for Sony BURANO

The kit includes a modular camera cage with numerous mounting options such as 1/4"-20 and 3/8"-16 holes, rosettes, 15mm LWS rod block, and 15mm LWS baseplate.

The cage includes a top handle, a rotating EVF bracket to relocate your EVF, two 7.9" long 15mm rods, and a Gold Mount battery plate with numerous power distribution options and hot-swap functionality. A mini multi-tool is also included to assemble the cage and make adjustments, and an Allen wrench stores in the baseplate for quick access.

Tilta Battery Plate for Sony BURANO (Gold Mount)

Add power distribution to your Sony BURANO with this Battery Plate from Tilta to power your camera as well as multiple accessories. The durable aluminum Gold mount plate mounts onto the camera's V-mount plate to pass power through to the camera, and it provides one 6-pin LEMO-type 12-28 VDC input to enable hot swapping with an alternate power source.

Power accessories with numerous outputs, including one 14.8V D-Tap output, one 65W USB-C PD output, one 14.8V 2-pin LEMO-type output, one 3-pin 24V Fischer output, and one 3-pin 14.8V Fischer output. The plate also provides the ability to use physically larger batteries by extending it further from the camera body.

Tilta Full Camera Cage Plus for Sony BURANO

Add accessories and mounting options to your Sony BURANO cinema camera with the Full Camera Cage Plus from Tilta. The modular aluminum cage mounts around the camera to provide numerous accessory mounting options, including numerous 1/4"-20 and 3/8"-16 anti-twist threads, an ARRI-style rosette on the side, a top 15mm LWS rod block, and a 15mm LWS baseplate. Also included are two 7.9" 15m rods to add rod-mounted accessories such as a lens support, follow focus, or matte box.

The top handle slides into the top plate slot with two screws and provides additional 1/4"-20 and 3/8"-16 accessory threads, and it is also compatible with the original Sony top handle. The side plate can also adjust its angle and height for added versatility. You can mount the baseplate on a separately available Tilta dovetail using its 1/4"-20 and 3/8"-16 bottom threads.

Tilta Rotating EVF Bracket for Sony BURANO

Attach the original electronic viewfinder to your Sony BURANO cage top handle with this Rotating EVF Bracket from Tilta. The durable aluminum bracket mounts onto the separately available Tilta Top Handle for Sony BURANO using the handle's 15mm rod port. It is also compatible with the original Sony BURANO top handle. The BURANO EVF relocates onto the end of the bracket and provides 360° rotation and tilt to position your EVF just how you need it.



Tilta Battery Plate for Sony BURANO (Gold Mount)
Plate Front / Battery Mount Gold Mount
Plate Rear Mount V-Mount Battery Plate
Number of Battery Bays 1
Inputs/Outputs 2x Fischer 3-Pin Output
  1x LEMO 6-Pin Output
  1x LEMO 2-Pin Output
  1x D-Tap/P-Tap Output
  1x USB-C Output
Plate Material Aluminum Alloy
Weight 1.5 lb / 680 g

Tilta Full Camera Cage Plus for Sony BURANO
Support Type Baseplate, Cage, Handheld Support, Rod Support System
Grip Type Topside Handgrip
Camera Compatibility Sony BURANO
Mounting
Rod Standard 15 mm LWS / 60 mm Spacing
Included Rods 2x 7.9" / 20 cm 15 mm Aluminum Rod
Battery Plate Type No
Accessory Mounting Multiple Anti-Twist 1/4"-20 Female Thread
  Multiple Anti-Twist 3/8"-16 Female Thread
Tripod Mounting 1/4"-20 Female Thread, 3/8"-16 Female Thread
Rod Ports Top Plate
  2x 15 mm Rod Port
  Baseplate
  2x 15 mm Rod Port
Shoe Mounting No
Rosettes Side Plate
  1x ARRI Rosette w/ M6 Female Thread
Cable Clamp No
Materials Aluminum
Dimensions 16.5 x 9.5 x 6" / 41.9 x 24.1 x 15.2 cm
Weight 4.9 lb / 2.2 kg

Tilta Rotating EVF Bracket for Sony BURANO
Compatibility Sony BURANO Cinema Camera
  Tilta Top Handle for Sony BURANO
Mounting 1x 15 mm Rod
  1x Proprietary EVF Screw Mount
Color Black
Material of Construction Aluminum, Steel
Dimensions 9 x 6 x 3.5" / 22.9 x 15.2 x 8.9 cm
Weight 12.8 oz / 363 g
