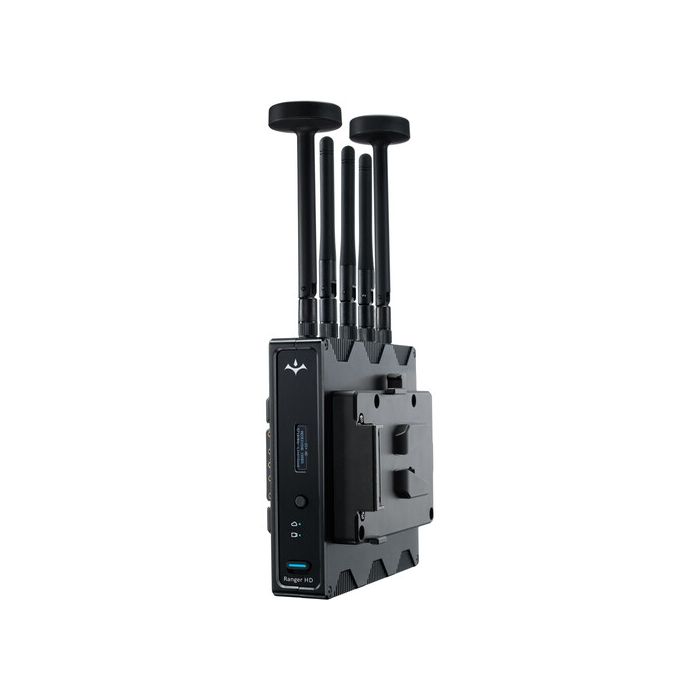

Teradek Ranger HD 3G-SDI/HDMI - Wireless RX V-Mount
- 2 x 3G-SDI Outputs; HDMI Output
- Uncompressed 1080p60 HDR up to 1500'
- < 1ms Delay
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Teradek Ranger HD Wireless Receiver (V-Mount)
- 1/4"-20 Light Stand Adapter
- USB Type-A to Type-B Cable (3')
- Ultra-Thin HDMI Type-A to Type-A Cable (18")
- 12G-SDI Cable (18")
- PSU 2-Pin to 30W AC Adapter (6')
- 3 x Antenna 2 dBi Wi-Fi 2.4/5.8 GHz
- 2 x Antenna H Mushroom
Ranger HD is an uncompressed, 1080 HDR wireless video transmission system for broadcast, live production, and professional A/V. The system utilises Teradek's patented JSSC technology and operates over the unlicensed 5GHz band. Ranger HD is also capable of transmitting over the 4.9 GHz band, which may require special licensing in certain countries.
Power Through Interference
Teradek's patented Joint Source Channel Coding (JSCC) technology, utilising MIMO and OFDM, enables the transmission of uncompressed, 10-bit, 4:2:2 video at less than 1 millisecond of delay. Ranger’s exclusive RF design is UNII-5 ready and utilises 40 MHz / 20 MHz channels with far greater efficiency than H.264 / HEVC encoding solutions and offers better performance in the noisiest environments.
Easy Smartphone Configuration
Command your wireless workflow from the palm of your hand with the Launchpad app for iOS and Android. Pair transmitters and receivers with the touch of a button, monitor channel interference, and set operating frequencies directly from the app, no cables needed!
Unbreakable Encryption
Ranger offers the industry’s best protection against prying eyes with AES-256 encryption using RSA 1024 key pairing. Combined, these two technologies ensure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorisation.
|
RANGER HD RX |
|
|
AUDIO |
|
|
Audio Compression |
48kHz 24-bit PCM |
|
Audio Input |
N/A |
|
Audio Output |
Embedded SDI/HDMI Audio Input (2 channel) |
|
PHYSICAL ATTRIBUTES |
|
|
Dimensions |
5.5” x 5.3” x 1.2” (140 x 133 x 30mm) |
|
Weight |
23.2oz (658g) |
|
Construction |
Milled aluminium (chassis), regulation-compliant PCB |
|
Configuration Interface |
OSD Screen with Menu Joystick Navigation |
|
Switches |
On/Off Switch |
|
Desktop App |
Launchpad application for OSX & Windows |
|
Mobile App |
Launchpad app (iOS and Android) configuration via Bluetooth |
|
USB Interface |
Upgrade via Micro-USB |
|
Bluetooth |
Bluetooth 5 LE |
|
WIRELESS |
|
|
Wireless Non-DFS Frequencies |
5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz |
|
DFS Frequencies |
5.270 ~ 5.670 GHz |
|
Licensed Frequencies |
4.9 ~ 5.1GHz and 5.85 ~ 6.0 GHz |
|
RF Channel Selection |
Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies) |
|
Encryption |
AES-256, RSA-1024 key exchange |
|
RF power |
18 dBm |
|
Antennas |
3x Vertical 2dbi antennas |
|
Range |
Up to 1000 ft line of sight |
|
Multicast |
Can connect one transmitter to up to 6 receivers |
|
Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones |
|
POWER |
|
|
Power |
2-Pin Circular locking connector 6-28 VDC |
|
Battery |
Gold or V mount battery plate |
|
Nominal Power Consumption |
15 Watts |
|
Operating Temperature |
0~40 deg-C |
|
GENERAL |
|
|
Mountability |
Integrated Gold or V Battery Mount, Multiple mounting options with M3, 3/8” and 1/4-20” holesholes |
