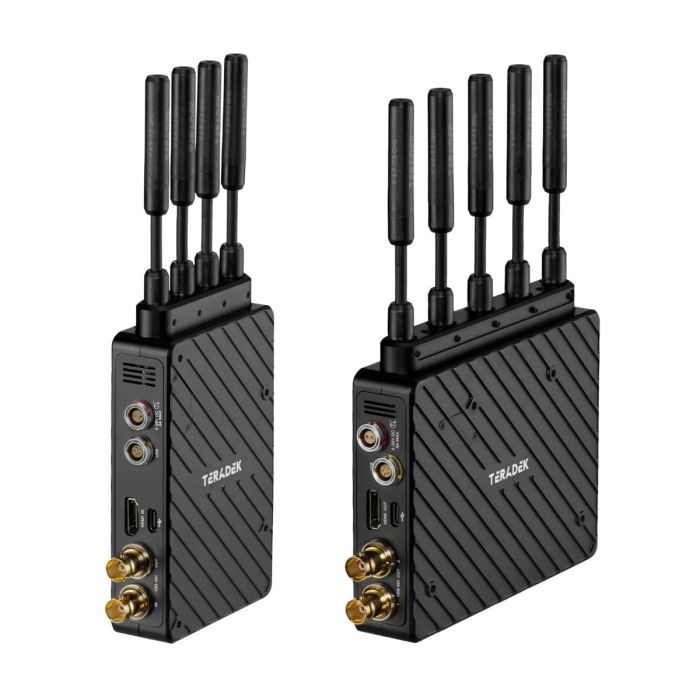

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX/RX
by TeradekBolt 6 XT is a wireless video transmission system that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- 1 x Bolt 6 XT 750 TX
- 1 x Bolt 6 XT 750 RX
- 1 x Lightstand Adapter 1/4-20in
- 1 x Hot Shoe Adaptor
- 2 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
- 2 x SDI 12G BNC to BNC 18in/46cm Cable
- 1 x Teradek Case Large - Bolt XT TX/2RX
- 1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
- 9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
- 1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable"
Bolt 6 XT is a wireless video transmission system that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 XT Sets offer three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.
The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.
| Specification | Bolt 6 XT 750 RX | Bolt 6 XT 750 TX |
| Video | ||
| Video Outputs | 12G-SDI SMPTE 2082-1 / 75Ω (BNC x1), 1x HDMI 2.0 Type-A | 12G-SDI SMPTE 2082-1 / 75Ω (BNC x1) |
| SDI Ancillary Data Support | Supports metadata, timecode, start/stop flags | Supports metadata, timecode, start/stop flags |
| Color Sampling | SDI: YCbCr 4:2:2 10-bit / HDMI: RGB 4:4:4 8-bit | SDI: YCbCr 4:2:2 10-bit / HDMI: RGB 4:4:4 8-bit |
| Delay Tx to Rx | <0.001 sec | <0.001 sec |
| Output Video Scaling | Yes, Framerate and Resolution Scaling | |
| Video Inputs | 12G-SDI SMPTE 2082-1 / 75Ω (BNC x1), 1x HDMI 2.0 Type-A | |
| Video Outputs | 12G-SDI SMPTE 2082-1 / 75Ω (BNC x1) | |
| SDI Ancillary Data Support | Supports metadata, timecode, start/stop flags | |
| Color Sampling | SDI: YCbCr 4:2:2 10-bit / HDMI: RGB 4:4:4 8-bit | |
| Delay Tx to Rx | <0.001 sec | |
| Input Cross Conversion | Yes, HDMI to SDI | |
| Supported Resolutions | ||
| Supported Resolutions | 4Kp23.98–60, 1080p23.98–60, 1080psf23.98–30, 1080i50/59.94/60, 720p50/59.94/60 | 4Kp23.98–60, 1080p23.98–60, 1080psf23.98–30, 1080i50/59.94/60, 720p50/59.94/60 |
| Video Processing | ||
| Video Compression | Visually Lossless | Visually Lossless |
| Color Correction | 17x17x17 3D LUT (10-bit) | None |
| Audio Processing | ||
| Audio Compression | 48kHz 24-bit PCM | 48kHz 24-bit PCM |
| Physical | ||
| Dimensions | 112 x 139 x 27 mm | 132 x 91 x 27 mm |
| Weight | 430 g (15.2 oz) | 344 g (12.1 oz) |
| Construction | Milled Aluminum + PCB | Milled Aluminum + PCB |
| Mountability | Multiple mounting options 1/4"x20 & 3/8"x16 | Multiple mounting options 1/4"x20 & M3 |
| Interfaces | ||
| Configuration Interfaces | OSD with Menu, Joystick Navigation | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch | On/Off Switch |
| USB Interface Functionality | Upgrade via USB-C 5pin Locking Connector CCU | Upgrade via USB-C 5pin Locking Connector CCU |
| Bluetooth | 2.4 GHz | 2.4 GHz |
| Network | ||
| Antennas | 5 External 2 dBi antennas | 4 External 2 dBi antennas |
| Wireless | 5.190–5.230 GHz, 5.755–5.795 GHz, 5.945–6.425 GHz / DFS: 5.270–5.670 GHz | 5.190–5.230 GHz, 5.755–5.795 GHz, 5.945–6.425 GHz / DFS: 5.270–5.670 GHz |
| RF Channel Selection | Auto, Manual | Auto, Manual |
| Encryption | AES-256, RSA-1024 | AES-256, RSA-1024 |
| RF Power | 21 dBm EIRP | 23 dBm EIRP |
| Range | Up to 750 ft (LOS) | Up to 750 ft (LOS) |
| Unicast Multicast | 1 TX → up to 6 RX | 1 TX → up to 6 RX |
| Noise Rejection | Coexists with WiFi, up to 6 sets in same location | Coexists with WiFi, up to 6 sets in same location |
| Power | ||
| Power Input | 2-pin Circular Locking, 6–28 VDC | 2-pin Circular Locking, 6–28 VDC |
| Battery | None, optional Gold/V-Mount plate | None, optional Sony/Canon dual plate |
| Battery Runtime | 18 W | 20 W |
| Environmental | ||
| Operating Temperature | 0–40℃ | 0–40℃ |
| Outputs | ||
| Audio Output | Embedded SDI/HDMI Audio Output (2 Ch) | |
| Inputs | ||
| Audio Input | Embedded SDI/HDMI Audio Input (2 Ch) | |
